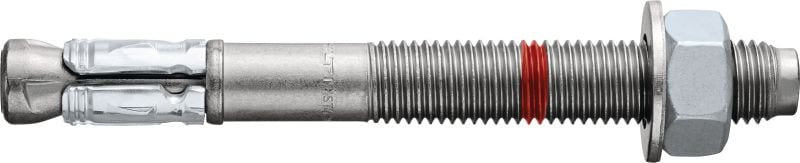

Our highest performing wedge expansion anchor for bearing high static and seismic loads in cracked concrete (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Installation tools: TE 30-22 cordless rotary hammer, TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Installation tools
TE 30-22 cordless rotary hammer, TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench
PROFIS software
Yes

Documents

Features & Applications

Features

  • Innovative performance – our next-generation anchors offer improved concrete capacity and pull-out loads, allowing you to optimise baseplate size and anchor usage and get more value out of your materials
  • Unlock flexibility – anchors can be securely installed in shallow embedment depths for productivity and deep embedment depths for increased performance with flexible edge and spacing distances
  • Faster and easier installation – instal our full range of anchors quickly with our Adaptive torque compatible tools and without the need for borehole cleaning
  • Safer and more reliable– patented anti-spin expansion cone designed to eliminate spinning issues for a more reliable anchor installation
  • Cost-saving design – pair with PROFIS Engineering software to simplify the design of steel-concrete connections and reduce material costs

Applications

  • Fastening baseplates, handrails, façade systems and mechanical, electrical or plumbing supports to concrete
  • Fastening in cracked and uncracked concrete required for building code compliancy
  • Qualified to resist seismic actions and loads; for full coverage of ETA approved C1 and C2 critical connection requirements
  • Suitable for dry indoor use
  • Qualified to resist seismic actions and loads; for full coverage of ACI compatible design requirements

For approval or certificate information, please see individual items.
