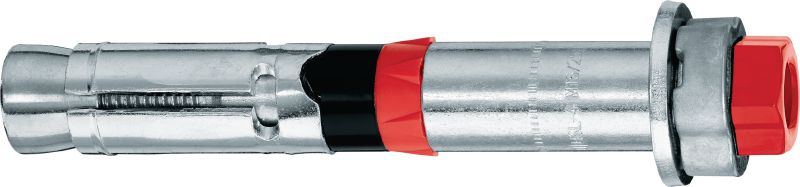

HSL4-B Heavy-duty wedge anchor

Ultimate-performance heavy-duty torque-controlled wedge anchor with approvals for concrete (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated

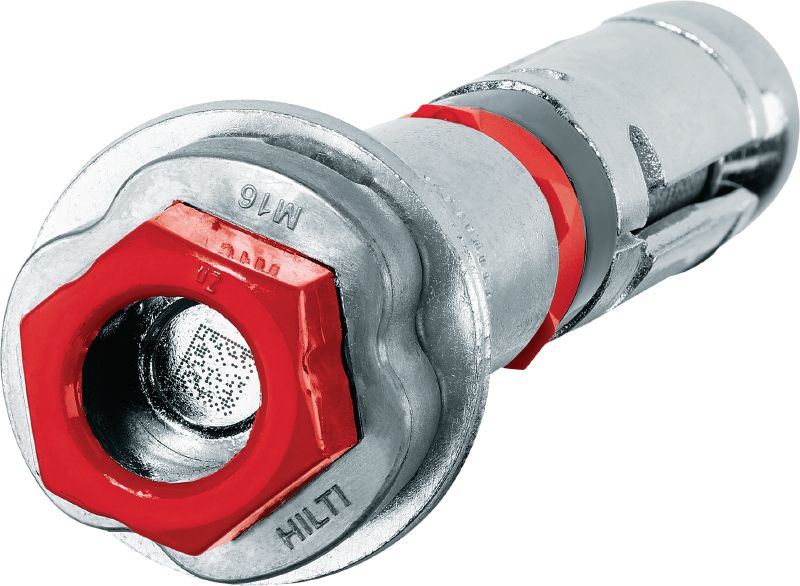

  • Head configuration: Safety cap (Torque limitation nut)
  • Approvals / test reports: ETA, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Safety cap (Torque limitation nut)
Approvals / test reports
ETA, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS software
Yes

Documents

Features & Applications

Features

  • High tensile and shear load capacity
  • Force-controlled expansion which allows follow-up expansion

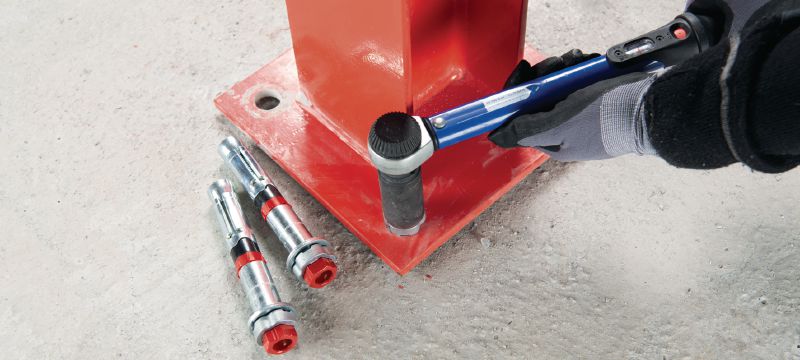

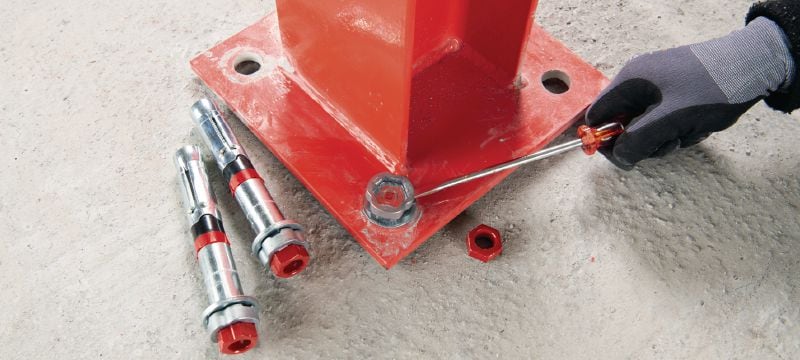

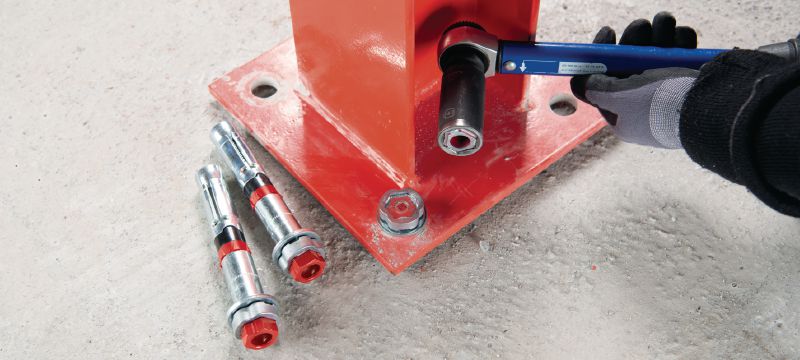

  • Special safety cap helps ensure proper installation torque is applied even if not using a calibrated torque wrench
  • ETA Option 1 for cracked and uncracked concrete
  • ICC-ES/AC 193 for cracked or uncracked concrete and seismic applications

Applications

  • Heavy-duty fastenings in highly safety-relevant or dynamic applications, including applications in nuclear power plants
  • Applications where extensive approval back-up or technical back-up is required, e.g. machines, heavy equipment, steel columns, heavy pipe supports, pumps, beam supports, medical equipment, cantilevers, cranes, car hoists, etc.

For approval or certificate information, please see individual items.
