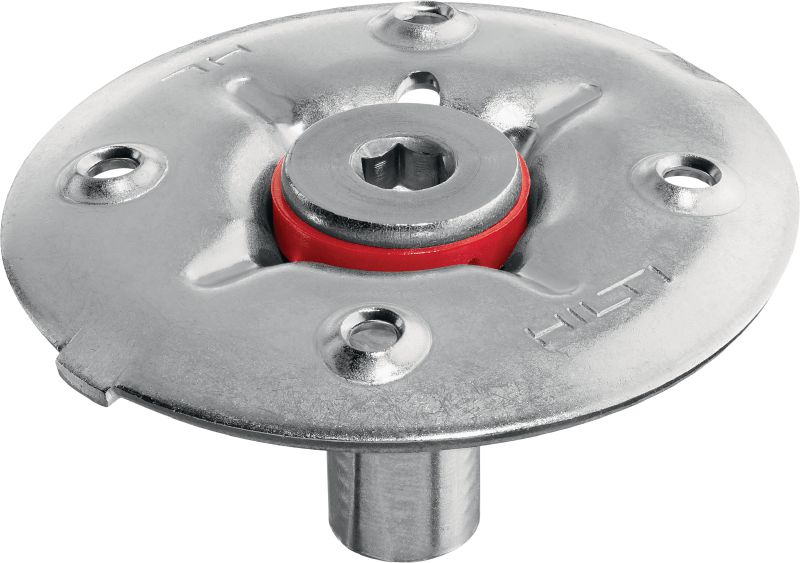

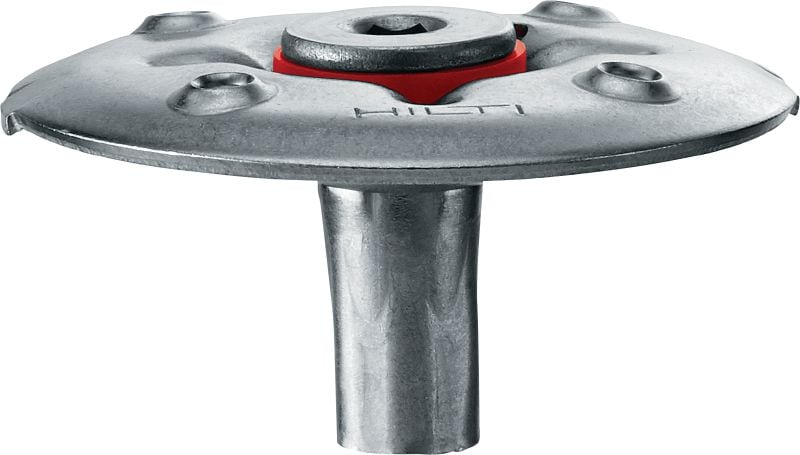

X-FCM-R HL High load grating fastener disc (stainless)
New product UltimateItem #r8777398
Grating disc for use with threaded studs in highly corrosive environments
- Application: Grating
- Approvals: ABS, BV, DNV GL, LR
- For use with (tools): DX 460, DX 5, DX 6
Share
Features
- Stainless steel disc for high corrosion resistance
- Locking tabs on the disc helps to prevent loosening or spinning
- Non-slip disc surface
- Cordless solution
Applications

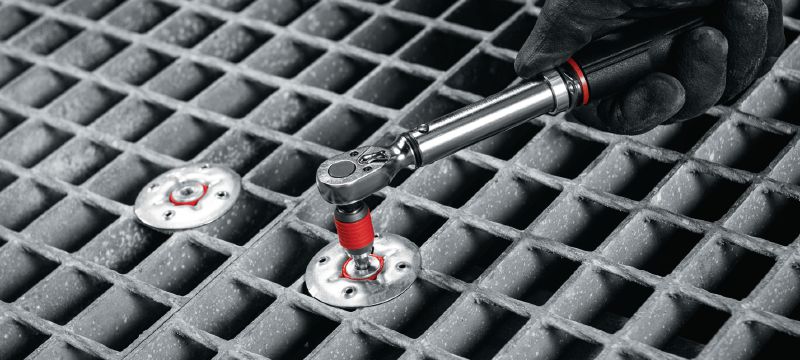

- Gratings which are exposed to high tensile load such as wave zone gratings
- Fastening grating in corrosive environments such as marine, offshore, petrochemical, power plants, etc.
- Grating discs available for heights starting from 28 mm to 53 mm

For approval or certificate information, please see individual items.
Technical Data
Documents
-
- ETA-24/0018 for X-FCM Grating fasteners and X-FCP Checker plate fasteners, English, German, [ 3 MB ]
- LR Type Approval 19/00003 for X-BT-GR, X-BT-MR and X-BT-ER threaded fasteners in marine, offshore and industrial application, English, [ 783.4 kB ]
- RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 108.1 kB ]
- ABS Type Approval 22-2285526-PDA for X-FCM-R, X-FCM-F grating and X-FCP checker plate fasteners in marine, off-shore and industrial environments, English, [ 110.3 kB ]
- DNV Type Approval TAS00001UJ for X-FCM-R, X-FCM-F and X-FCS-R grating fasteners in marine and industrial environments, English, [ 209.6 kB ]
- BV Type Approval 71291-A0 for X-FCM-R, X-FCM-F and X-FCS-R grating fasteners in marine environments, English, [ 577.8 kB ]
- BV approval 54054-B1 for X-BT-GR, X-BT-MR and X-BT-ER fastening system, English, [ 1.1 MB ]
-
- Operating Instruction X-FCM-R HL, Italian, Hebrew, Serbian, German, Russia, Swedish, Turkish, Ukrainian, Arabic, French, Portuguese, Sardinian, Malay, Spanish, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 1.9 MB ]
