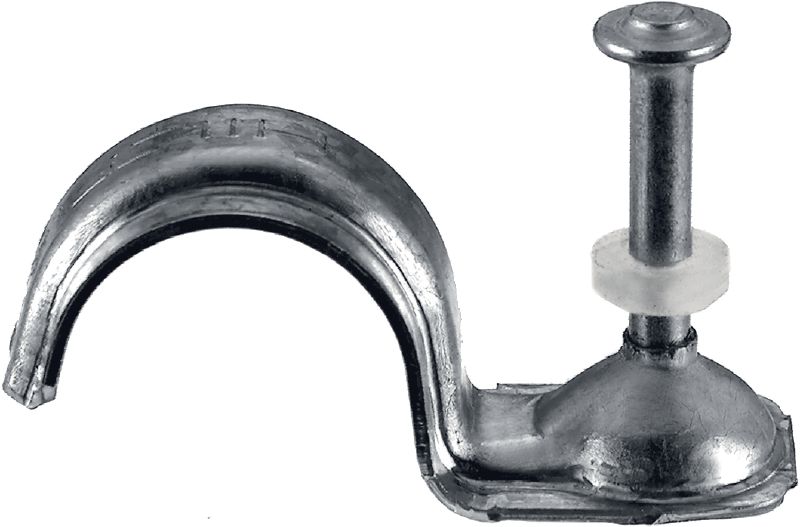

X-FB C27 P-clip with nail

Metal conduit strap with pre-mounted concrete nail for use with powder-actuated tools

Application: Conduit Fastening, Piping Connections
Material: Carbon steel
For use with (tools): DX 351, DX 460, DX 5, DX 6

ultimate

Technical Data

Application

Conduit Fastening, Piping Connections

Material

Carbon steel

For use with (tools)

DX 351, DX 460, DX 5, DX 6

Base materials

Concrete (soft), Concrete (normal-weight over metal deck), Concrete (lightweight over metal deck), Masonry (solid clay brick), Masonry (solid limestone brick)

Approvals

IBMB

Width

17.5 mm

Corrosion protection

Galvanised zinc coated <20 µm

Environmental conditions

Dry indoor

Product class

Ultimate

Documents

Features & Applications

Features

Quick, cost-efficient fastening of conduits and pipes
Integrated top hat for high-quality, more reliable fastenings
High-grade, preassembled C27 nail for more secure fastenings on concrete
Reinforcing rib to increase the conduit clip's rigidity

Applications

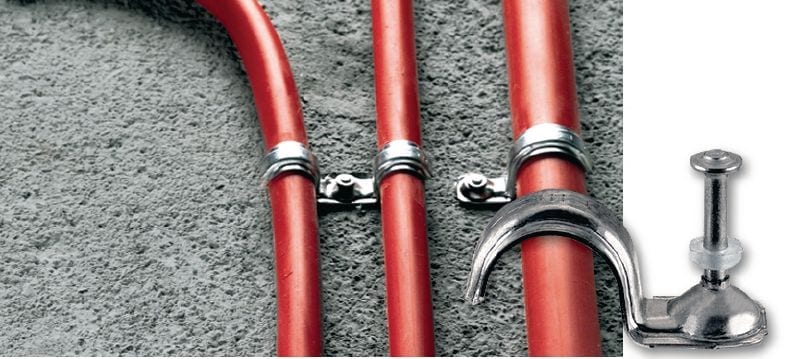

Fastening flexible electrical conduits on concrete
Fastening insulated water and waste water pipes
Fastening water and heating pipes
0

For approval or certificate information, please see individual items.
