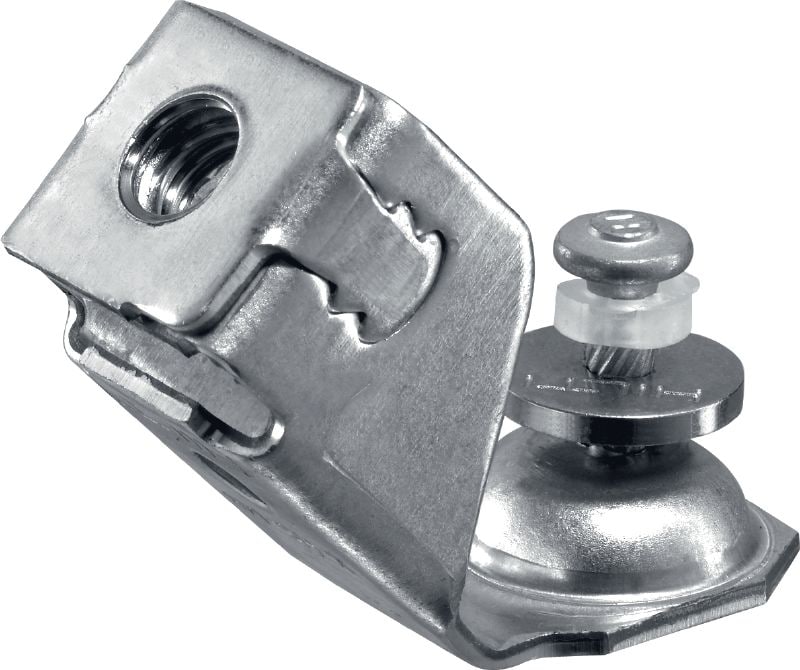

X-HS M U Threaded rod hanger with nail

Ceiling hanger for attaching threaded rod

  • Material: Carbon steel
  • For use with (tools): DX 351, DX 460, DX 5, DX 6
  • Base materials: Concrete (soft), Concrete (tough), Steel
ultimate

Customers also searched for ceiling hangersuspending ceiling wiressuspending hangers or direct fastening.

Technical Data

Material
Carbon steel
For use with (tools)
DX 351, DX 460, DX 5, DX 6
Base materials
Concrete (soft), Concrete (tough), Steel
Approvals
LR
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Length
36 mm
Product class
Ultimate

Documents

Features & Applications

Features

  • Designed for extremely high productivity – up to 10 times quicker than drilling and with less vibration
  • The hanger (threaded rod) can be fitted before the fastener is driven
  • Optimum threaded rod adjustment (adjustment range 25 mm)
  • Ballistic point for optimum driving characteristics

Applications

  • Ceiling hanger for attaching threaded rod

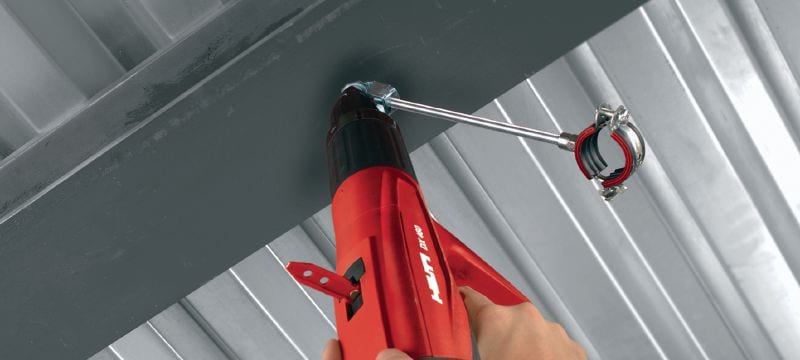

  • Installing suspended components, e.g. ceiling frames or pipes, on hard concrete or steel
  • Fastening installation channels on roof beams and ceilings
  • Securing flexible conduits, rigid conduits and cables to ceilings, walls and floors

For approval or certificate information, please see individual items.
