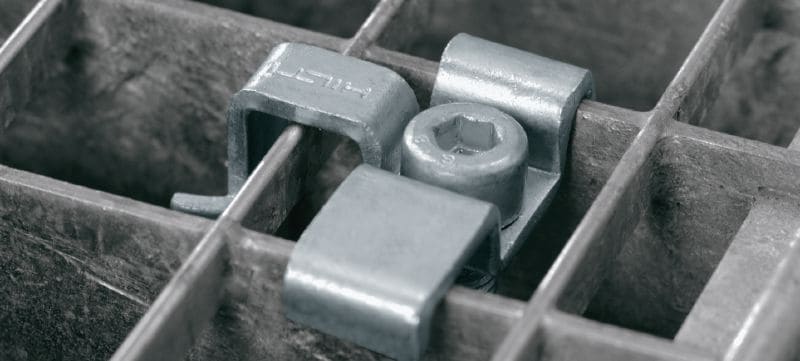

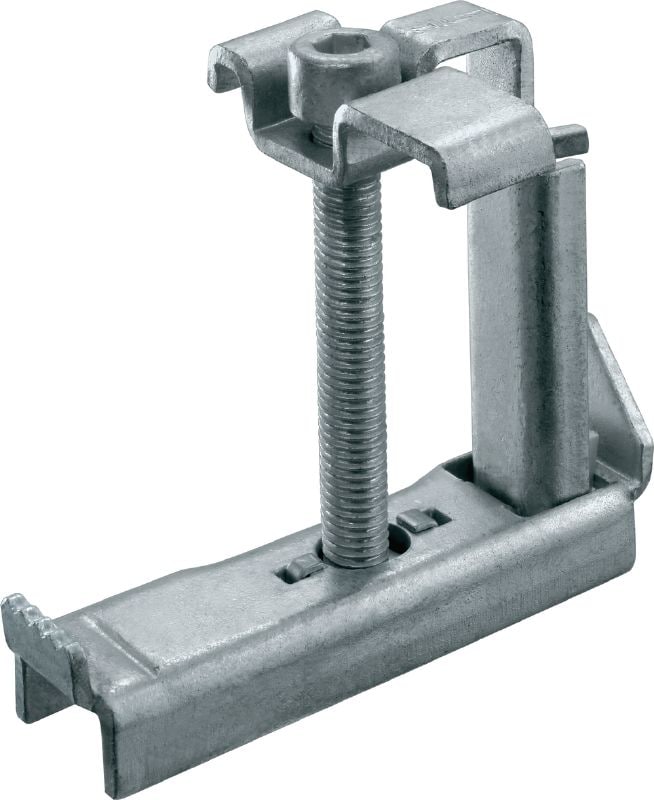

X-MGR Grating fastener
Grating disc X-MGR M60 #384233
Mechanically fastened grating fastener
- Application: Grating
- Approvals: ITB
- Corrosion protection: Hot-dip galvanized
standard
Choose options
Grating height
- 25 - 40 mm
Grating width range
- 25 - 40 mm
Corrosion protection
- Hot-dip galvanized
Pack size
- 20 pc
Quantity
Packs
Total Piece
20
Ex Vat and Packaging/Forwarding charges
AED 534.70
AED 26.74 / 1 Piece
Technical Data
Application
Grating
Approvals
ITB
Corrosion protection
Hot-dip galvanized
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Minimum thickness of base material (steel)
3 mm
Product class
Standard
Documents
Features & Applications
Features
- Removable fastener suitable for various grating heights
- Convenient and simple to use
- Hot-dip galvanised corrosion protection
Applications
- Fastening grating to steel structures in mildly corrosive environments
