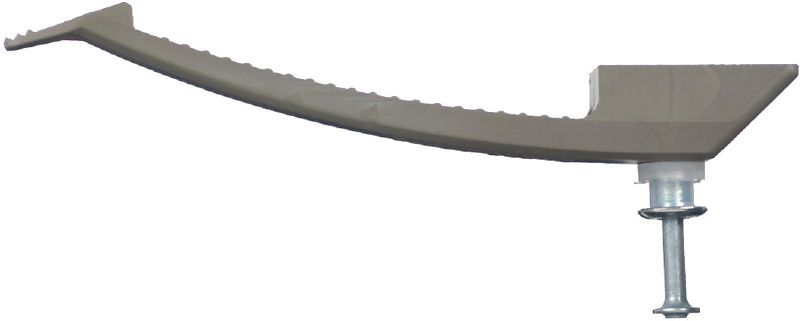

X-EKB FR/FWI Fire-resistant cable clasp with nail

Cable clasp X-EKB 8-FR U37 #386233

Flame retardant cable clasp with pre-mounted, ultimate-performance nail for fastening cables to tough concrete using powder-actuated tools

  • Application: Cable Fastenings
  • Material: Polyamide (PA), Halogen-free, Flame-retardant according to EN 60695-2-11 at 960°C, Flame-retardant according to IEC 60695-2-11 at 960°C, Flame-retardant according to VDE 0471 part 2-11 at 960°C, Flame-retardant according to UL 94 (HB), Flame-retardant according to UL 94 (V-0), UV-resistant (fair)
  • For use with (tools): DX 2, DX 351, DX 460, DX 5, DX 6
ultimate

Choose options

Cable capacity (10 mm cable)
  • 5
Cable capacity (8 mm cable)
  • 8
Cable capacity (6 mm cable)
  • 8
Pack size
  • 100 pc
Product options
Quantity
Packs
Total Piece
100
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 1,555.02

AED 15.55 / 1 Piece

Technical Data

Application
Cable Fastenings
Material
Polyamide (PA), Halogen-free, Flame-retardant according to EN 60695-2-11 at 960°C, Flame-retardant according to IEC 60695-2-11 at 960°C, Flame-retardant according to VDE 0471 part 2-11 at 960°C, Flame-retardant according to UL 94 (HB), Flame-retardant according to UL 94 (V-0), UV-resistant (fair)
For use with (tools)
DX 2, DX 351, DX 460, DX 5, DX 6
Base materials
Concrete (soft), Concrete (tough), Masonry (solid clay brick), Masonry (solid limestone brick)
Approvals
CSTB
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Product class
Ultimate

Documents

Features & Applications

Features

  • Quick, cost-efficient fastening of cables
  • Convenient fastening on ceilings using the pole tool extension system
  • Virtually dust-free solution for fastening overhead
  • Material property inhibits the spread of fire and toxic fumes
  • Stop function for controlled fastener driving

Applications

  • Installing cables flat on concrete
  • Securing electrical cables to concrete
