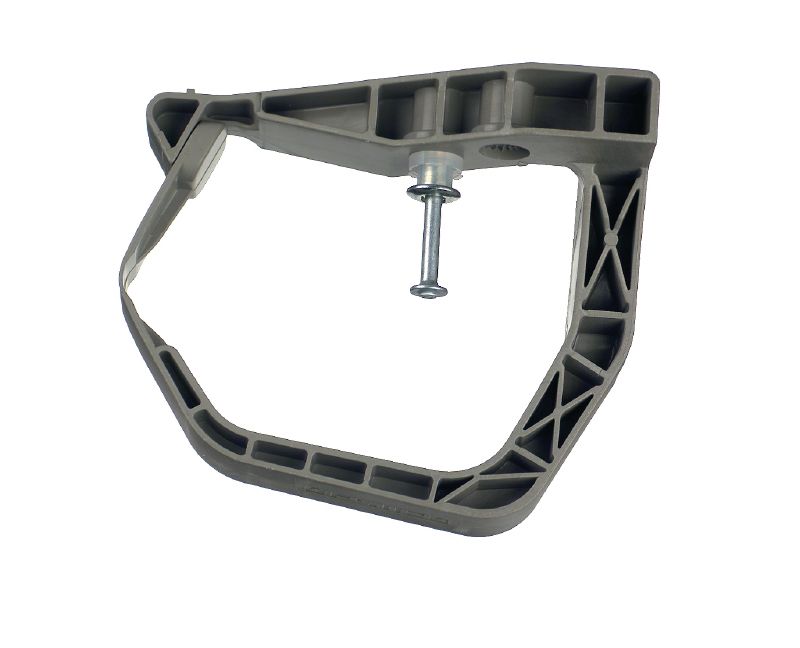

X-ECH/FR U Fire-resistant cable holder with nail

Bunched-cable hol. X-ECH/FR-S U37 #386238

Flame-retardant cable bundle holder with pre-mounted, ultimate-performance nail for fastening cables to tough concrete using powder-actuated tools

  • Application: Cable Fastenings
  • Material: Polyamide (PA), Halogen-free, Flame-retardant according to EN 60695-2-11 at 960°C, Flame-retardant according to IEC 60695-2-11 at 960°C, Flame-retardant according to VDE 0471 part 2-11 at 960°C, Flame-retardant according to UL 94 (HB), Flame-retardant according to UL 94 (V-0), UV-resistant (fair)
  • For use with (tools): DX 2, DX 351, DX 460, DX 5, DX 6
ultimate

Choose options

Cable capacity (10 mm cable)
  • 10-15
Pack size
  • 100 pc
Product options
Quantity
Packs
Total Piece
100
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
Price loading error occured

Please contact us

Technical Data

Application
Cable Fastenings
Material
Polyamide (PA), Halogen-free, Flame-retardant according to EN 60695-2-11 at 960°C, Flame-retardant according to IEC 60695-2-11 at 960°C, Flame-retardant according to VDE 0471 part 2-11 at 960°C, Flame-retardant according to UL 94 (HB), Flame-retardant according to UL 94 (V-0), UV-resistant (fair)
For use with (tools)
DX 2, DX 351, DX 460, DX 5, DX 6
Base materials
Concrete, Some types of masonry (sand-lime)
Approvals
UL
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Product class
Ultimate

Documents

Features & Applications

Features

  • Quick, cost-efficient fastening of cable bunches

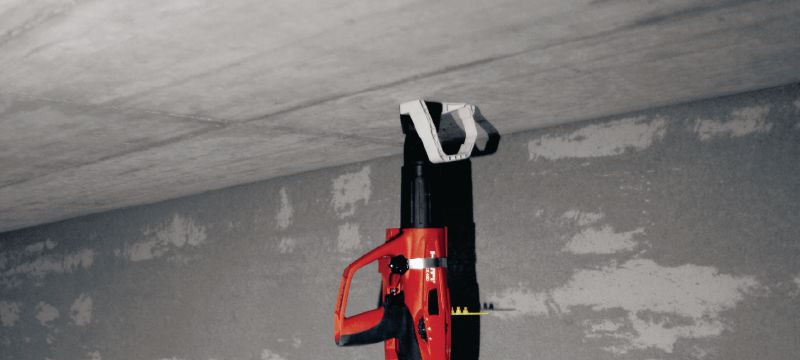

  • Convenient fastening on ceilings using the pole tool extension
  • Virtually dust-free solution for fastening overhead
  • Material property inhibits the spread of fire and toxic fumes
  • Stop function for controlled fastener driving

Applications

  • Fastening bunched electrical cables on concrete
  • Securing bunched electrical cables to ceilings and walls
