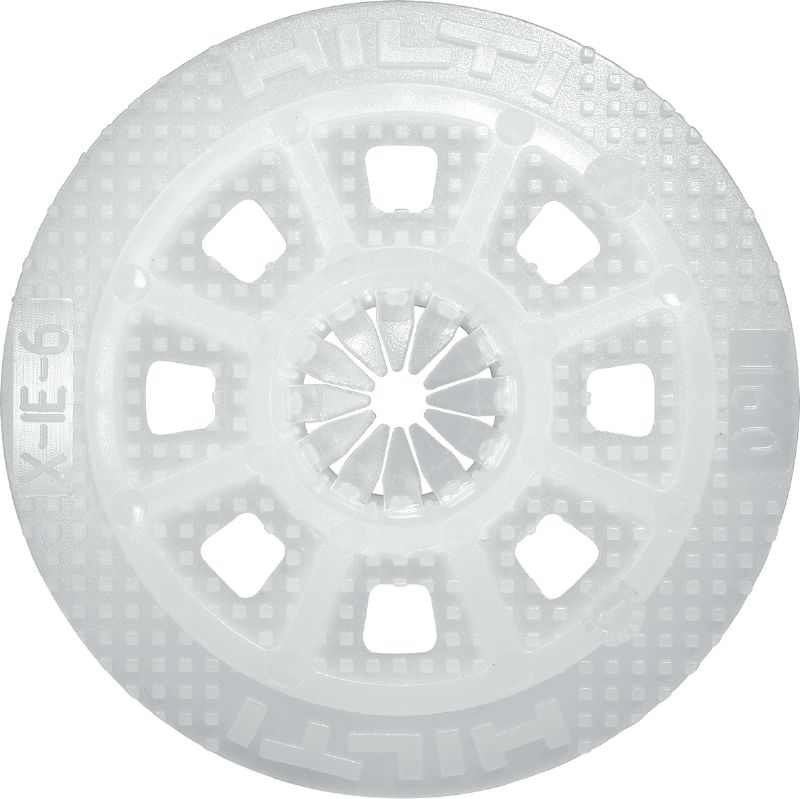

X-IE 6 Insulation fastener

Insulation fastener

  • Application: Rigid Board Insulation, Mineral Wool Insulation
  • Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
  • Base materials: Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
ultimate

Customers also searched for insulation fastenerinsulating ceilingsinsulating panels or direct fastening.

Choose options

Insulation thickness
  • 30 mm
  • 50 mm
  • 60 mm
  • 100 mm
Pack size
  • 200 pc
  • 300 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 1,596.40

Technical Data

Application
Rigid Board Insulation, Mineral Wool Insulation
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Base materials
Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
Approvals
ITB
For use with (tools)
DX-IE
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
4 mm
Material
High-density polyethylene (HDPE), Halogen-free, Silicone-free
Colour
Colourless
Product class
Ultimate

Documents

Features & Applications

Features

  • Extremely quick insulation fastening system – up to five times faster than conventional methods
  • High-strength AL nail (58 HRC hardness): low failure rates
  • Collapsible section: no crushing of the insulation material
  • Excellent thermal efficiency in a one-step solution – no cap is required

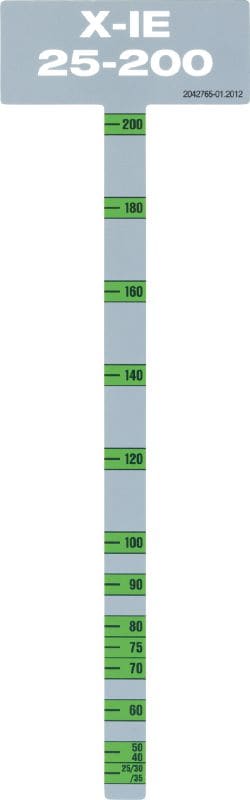

  • Gauge included for easy visual control of correct fastener driving depth

Applications

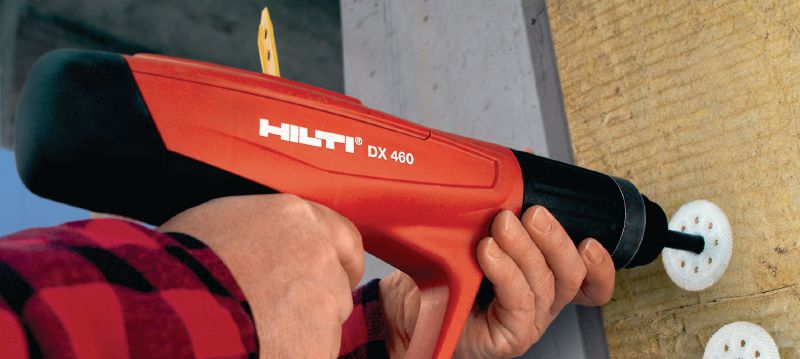

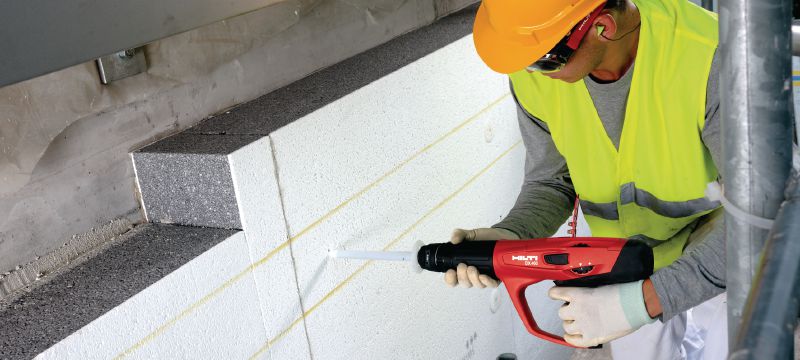

  • Fastening insulation on facades
  • Fastening insulation on ceilings

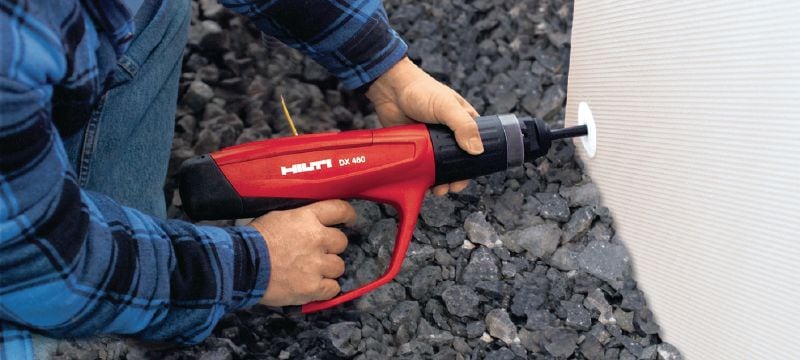

  • Fastening insulation on cellar exterior walls
  • Suitable for non ETICS insulation applications
  • Not suitable for ETICS applications

For approval or certificate information, please see individual items.
