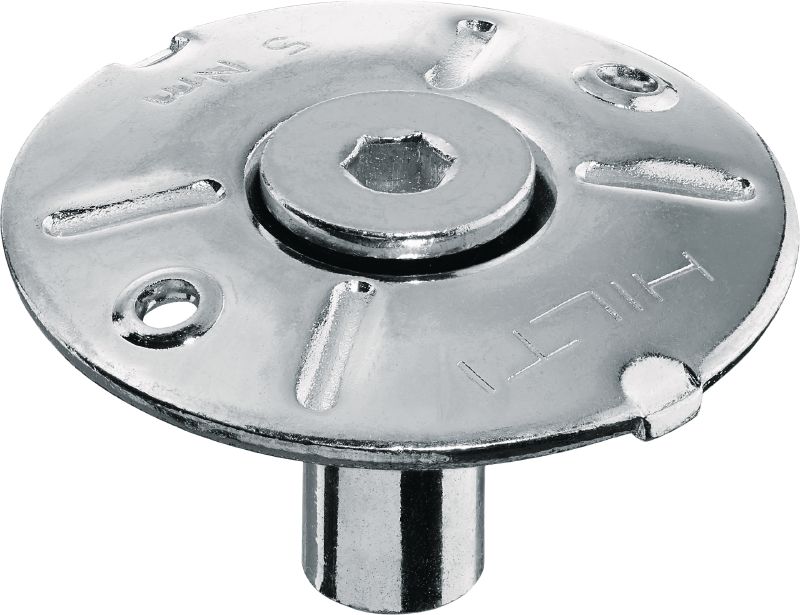

X-FCM-F NG Narrow grating fastener disc (duplex coated)

Configurator
Technical Data
Documents
Features & Applications
Related Products
L130779 (2556330)
L141128_cropped (223152)
L141129_cropped (223144)
L141130_cropped (223146)

Duplex coated narrow grating fastener disc for fixing narrow-mesh floor grates with threaded studs in mildly corrosive environments

  • Application: Grating
  • For use with (tools): DX 460, DX 5, DX 6
  • Corrosion protection: Duplex coating equivalent to 45 µm hot-dip galvanized
ultimate

Choose options

Grating height
  • 28 - 33 mm
  • 32 - 37 mm
  • 38 - 43 mm
  • 48 - 53 mm
Grating width range
  • 13 - 22 mm
Corrosion protection
  • Duplex coating equivalent to 45 µm hot-dip galvanized
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
From AED 1,656.65

Technical Data

Application
Grating
For use with (tools)
DX 460, DX 5, DX 6
Corrosion protection
Duplex coating equivalent to 45 µm hot-dip galvanized
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Minimum thickness of base material (steel)
6 mm
Product class
Ultimate

Documents

Technical information
Approval document
Brochure
Certificate
Operating Instruction
pdf X-FCM-F NG Data Sheet, English, German, Spanish, French, Italian, Polish [ 4.8 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Labour-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

Applications

  • Fastening narrow grating to steel in mildly corrosive C3 environments, such as power plants, industrial facilities and mining
  • For gratings exposed to standard loads such as walkways

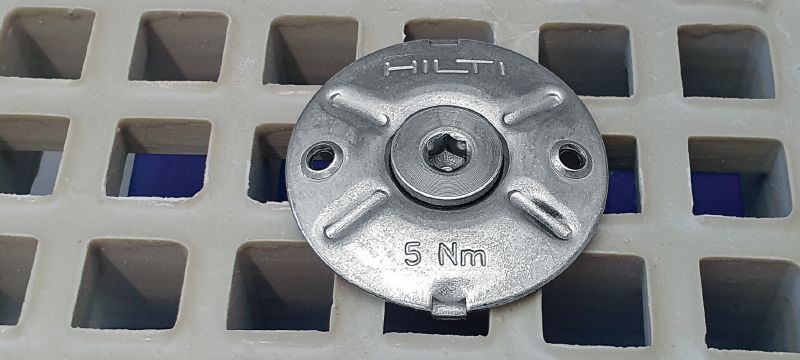

  • Fastening narrow-mesh steel grating
  • Fastening fiber-reinforced plastic (FRP) mini-mesh grating
  • Grating fastener disc for use with M8 threaded studs

For approval or certificate information, please see individual items.
