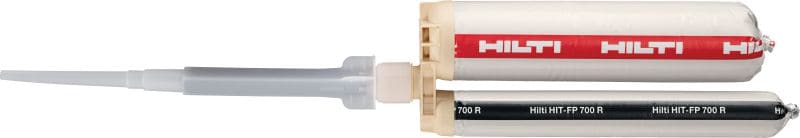

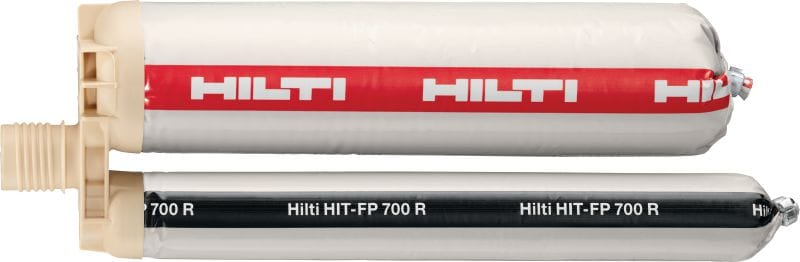

HIT-FP 700 R injectable cementitious adhesive anchor
New productItem #r13812960
Injectable cementitious adhesive anchor for fire-resistant structural reinforcing bar connections
- Base materials: Concrete (cracked), Concrete (non-cracked)
- Approvals / test reports: DIBt, ETA, Fire, Seismic
- Seismic loading: Yes
Share
Features
- Fire-resisting cementitious adhesive anchor with bond strength performance compared with a cast-in reinforcing bar even at temperatures up to 500°C – HIT-FP 700 R provides you the possibility of an efficient and code-compliant solution for most fire-rated structural connections e.g. EC2, Part 1
- Extensive range of assessment documents – ETA documentation for fire, static and 100 year working life available

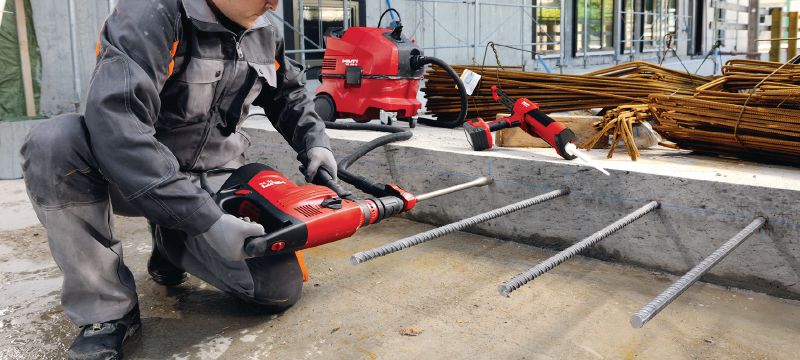

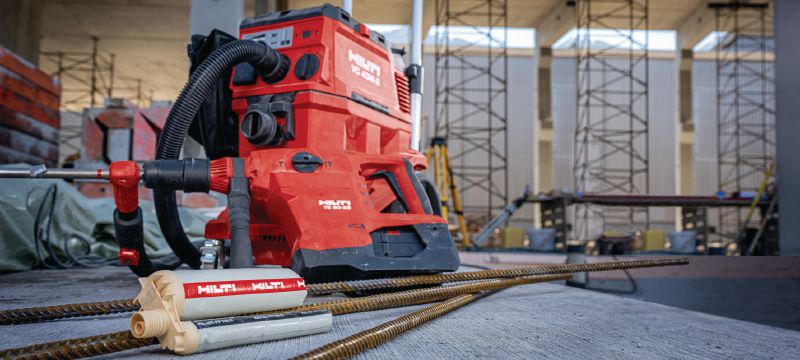

- Compatible with the Hilti SafeSet technique – save time on-site and minimise room for installation errors by using hollow drill bits with a compatible Hilti vacuum cleaner

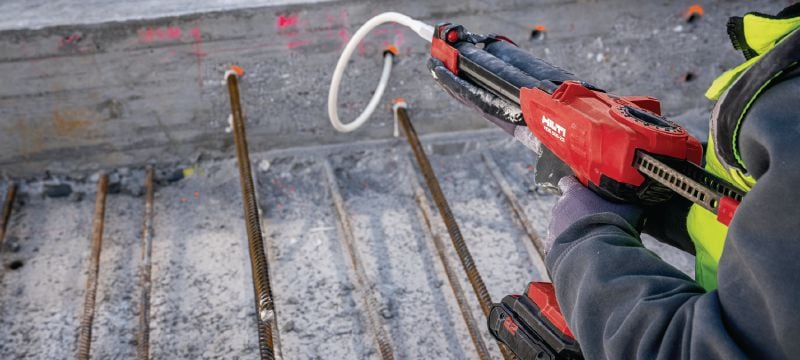

- Easier to handle – this cementitious adhesive anchor is compatible with your existing Hilti adhesive dispensers, helping to minimise wastage and time, especially when used with Hilti HDE battery-powered dispensers
- Specifier support available – use Hilti PROFIS Engineering software to simplify the design of post-installed fire-rated concrete-to-concrete connections, or contact your local Hilti Engineering Team for advice on complex projects
Applications
- Fire-rated post-installed reinforcing bar connections, including splice connections between new and existing concrete, new columns, column and beam extensions and closing of openings
- Post-installed concrete-to-concrete civil applications, including bridge extensions and diaphragm trench walls
- Compared to vinylester and epoxy mortars, FP 700 R is characterized by a longer curing process, similar to normal weight concrete. This product is engineered in such a way as to allow a seamless integration with current state-of-the-art reinforcing bar installation processes
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- White paper HIT-FP 700 R, English, [ 2.1 MB ]
- Concrete-to-Concrete Handbook for EU framework, English, [ 18.7 MB ]
- White paper Anchor On-site Testing, English, [ 1.2 MB ]
- White paper post installed rebar in Tunnelling, English, [ 1.6 MB ]
- White Paper Tips & Tricks On-site Anchor Testing, English, [ 1.5 MB ]
Application videos
-
Fire design PIR Promo (16:9, EN)
