HIT-HY 200-R V3 Adhesive anchor

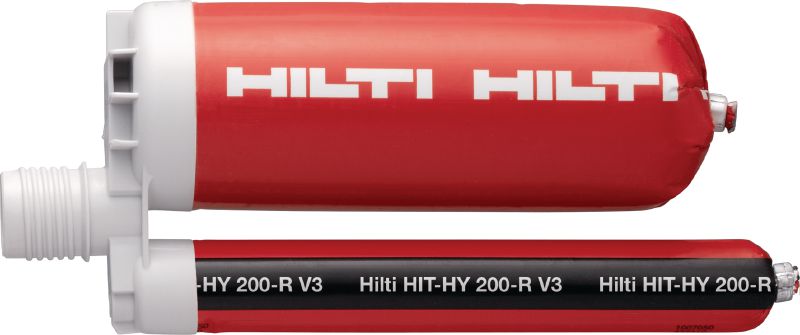

Injectable mortar HIT-HY 200-R V3 500/2 #2262131

Configurator
Technical Data
Documents
Features & Applications
Related Products
L061441_v1 (203673)
L142103_HNL_cropped (2282877)
L142088_HNA_cropped (2282857)
L131948_cropped (3155310)
L120580_cropped (204527)
L120587_cropped (204508)
L120633_cropped (204515)

Ultimate-performance injectable hybrid mortar with approvals for post-installed rebar connections and anchoring structural baseplates

  • Approvals / test reports: ETA
  • PROFIS software: Yes
  • Storage and transportation temperature range: 5 - 25 °C

Choose options

Content per can/cartridge
  • 0.5 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 205.20
AED 205.20 / 1 Piece

Technical Data

Approvals / test reports
ETA
PROFIS software
Yes
Storage and transportation temperature range
5 - 25 °C
Shelf life from date of manufacture (at 23°C and 50% relative humidity)
12 months

Documents

Approval document
Technical information
Certificate
HSE Information
Brochure
Material safety datasheet
Sustainability Documentation
pdf ETA-18/0972 HIT-HY-200-A/R V3 with HAS-D Anchor Jul-2023, English, German, Polish [ 16.3 MB ]
pdf ETA-20/0475 HCC-K, English, German, Polish, French [ 3.8 MB ]
pdf ETA-20/0697 HCC-U, English, German, French [ 14.9 MB ]
pdf ETA-19/0632 HIT-HY 200-A/R V3 with HIT-Z Anchor, English, German, Polish [ 19.5 MB ]
pdf ETA-15/0296 HIT-HY 200-A/R V3 with HIT-Z(-R)-D TP Anchor Jul-2023, English, German, French, Polish [ 14.1 MB ]

Features & Applications

Features

  • Optimized for post-installed rebar – longer working time for rebar applications in dry concrete, wet concrete, or water filled drill holes, with a wide working temperature range from -10 to +40°C
  • Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to EC2, TR069, TR082 or the Hilti Design Method

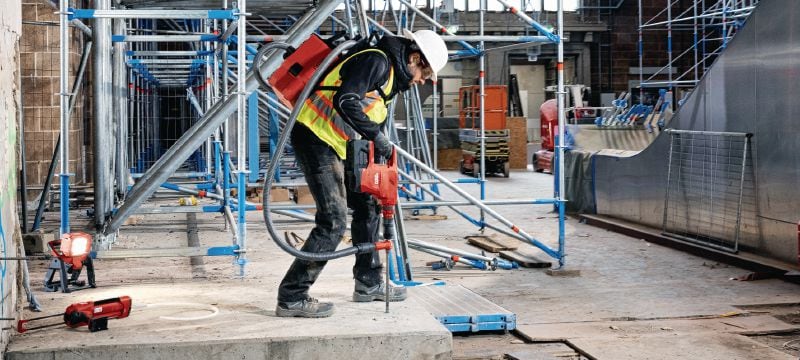

  • Versatile adhesive anchor for wide ranging conditions - approved for hammer drilled, hollow drilled, and diamond cored holes (with TE-YRT).

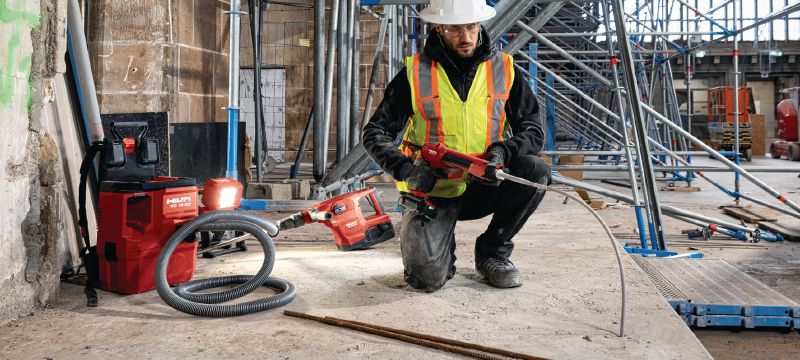

  • Faster, simpler, and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
  • Extensive approvals available - including ETA for cracked and uncracked concrete, seismic C2, fire resistance data, and with service life up to 100 years in rebar and anchor

Applications

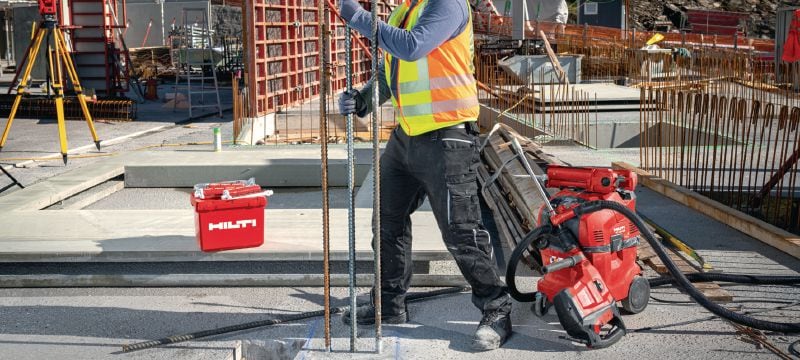

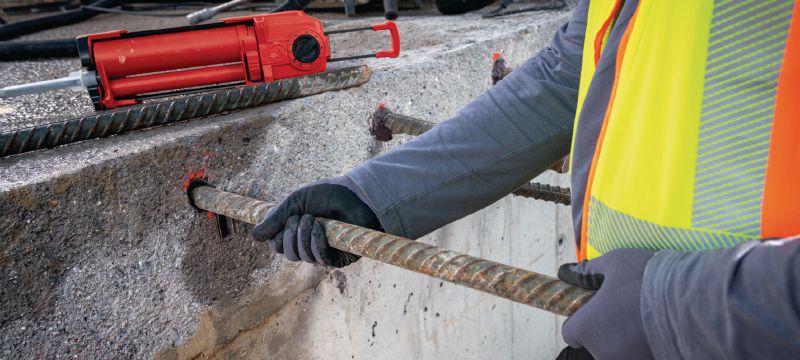

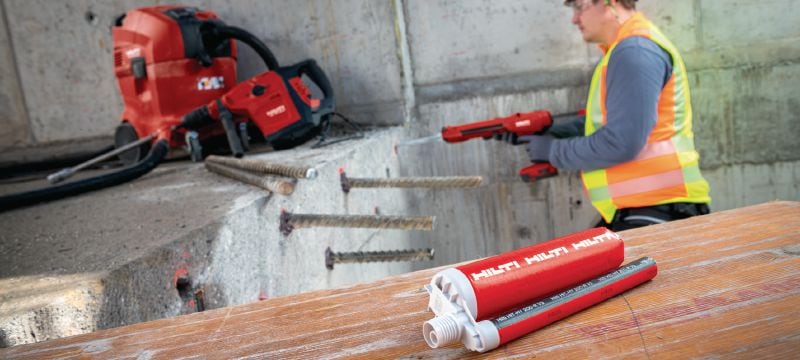

  • Structural concrete connections with post-installed rebar
  • Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete

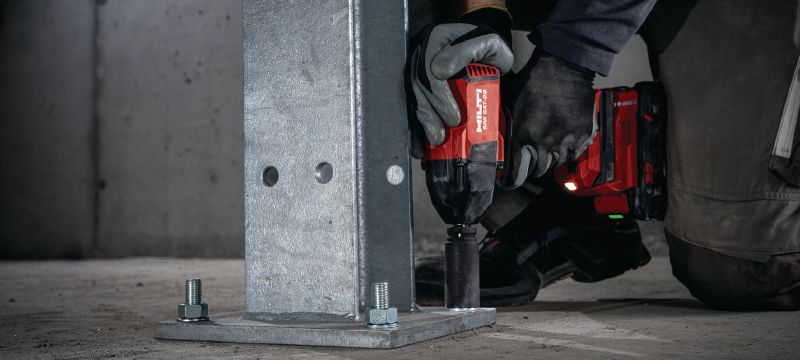

  • Anchoring structural steel connections (e.g. steel columns, beams) to concrete
  • Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
  • Concrete connections designed both as rigid and as simply supported
