HAC-C Cold-formed anchor channel

A.-Channel HAC-C 28/15 250 F #2168410

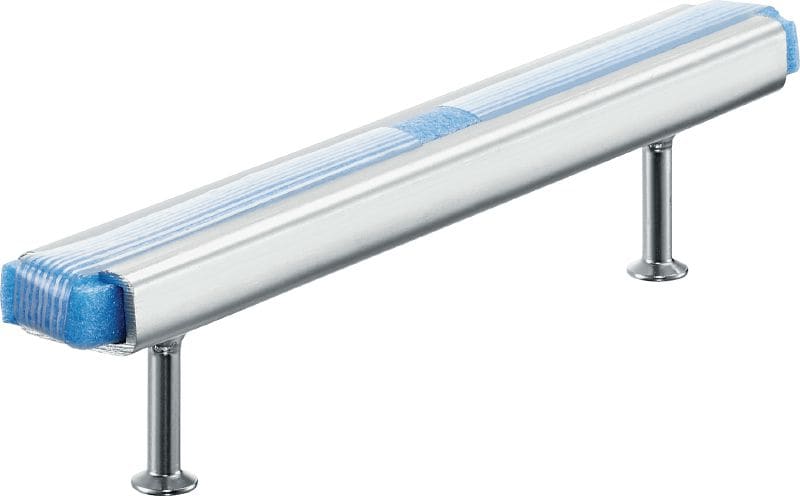

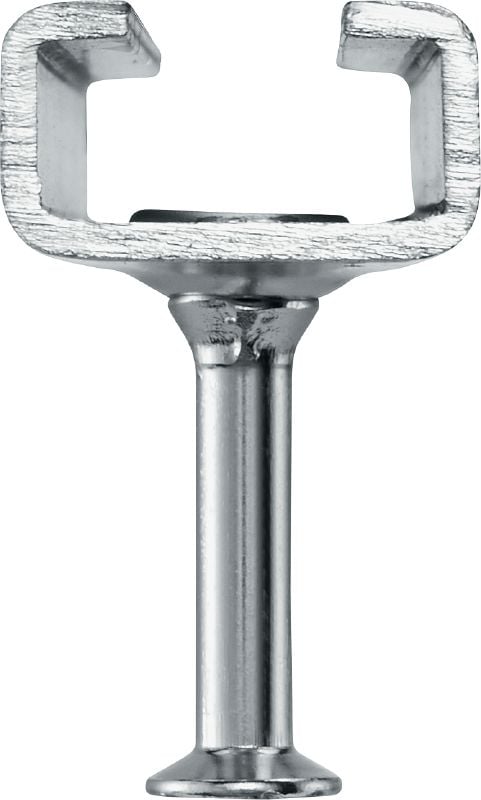

Cold-formed cast-in anchor channels in standard sizes and lengths for everyday applications

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Channel profile: HAC-C 28/15
  • Length: 250 mm

Choose options

Channel profile
  • HAC-C 28/15
Length
  • 250 mm
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Piece
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 92.03

AED 92.03 / 1 Piece

Technical Data

Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised

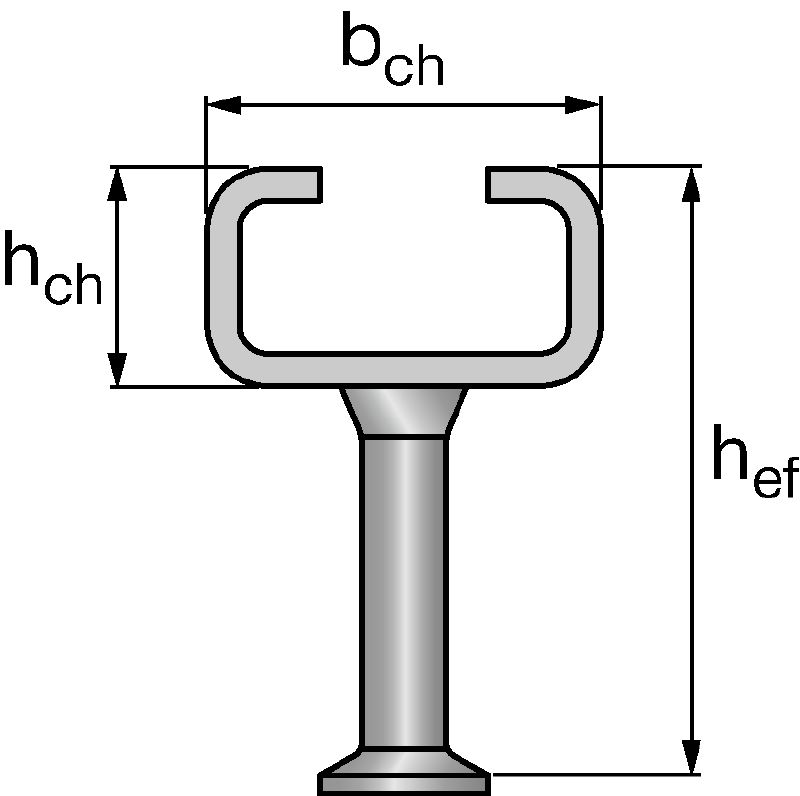

Channel profile
HAC-C 28/15
Length
250 mm
Standard embedment depth
45 mm
Anchor distance
200 mm
PROFIS software
Yes

Documents

Features & Applications

Features

  • Cold-formed, rounded profiles with constant material thickness – ensuring uniform load capacity
  • Versatile solution – engineered for everyday applications
  • LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece
  • ETA and fire approval documents available
  • Available in stainless steel and hot-dip galvanised versions – helping to provide corrosion protection as needed for specific environmental conditions

Applications

  • Building appliances (e.g. ventilation, heating)
  • Stadium seating
  • Precast components
