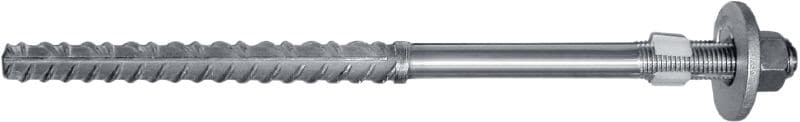

HZA-P Tension anchor
New productItem #r2863085
Tension anchor
- Material, corrosion: Carbon steel
- Drill bit diameter: 25 mm
- Environmental conditions: Dry indoor
Share
Features
- Hilti HZA-P tension anchors in combination with Hilti adhesive mortars allow punching shear reinforcement to be installed in previously cast concrete slabs
- Designed according to the applicable building code for structural concrete
- Can be combined with cast-in-place punching shear reinforcement
- Fire protection provided by concrete cover – the concrete surface remains smooth
- Cost-effective means of reinforcement against punching shear loads
Applications
- Strengthening of flat slabs to resist punching shear for safety reasons (e.g. higher applied loads or to make up for design flaws or deficiencies during construction)

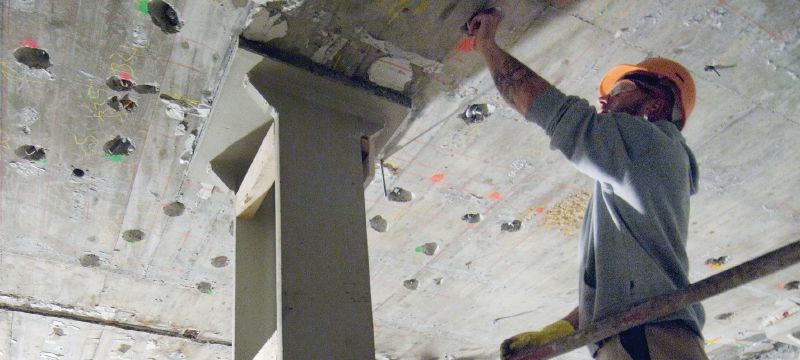

- When the upper side of the slab is inaccessible for installation work or is accessible only with great difficulty, Hilti HZA-P tension anchors are set in drilled holes inclined towards the column, using the appropriate injectable adhesive mortar
Technical Data
Documents
-
- Instruction for use HZA-R, Italian, German, Russia, Swedish, Turkish, Ukrainian, Arabic, French, Portuguese, Sardinian, Malay, Spanish, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 1.5 MB ]
-
- Operating Instruction Seismic/Filling set, Italian, Hebrew, Serbian, German, Russia, Swedish, Turkish, Ukrainian, Arabic, French, Portuguese, Sardinian, Malay, Spanish, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 1.3 MB ]
