Profiles for mounting slotted stone panels

  • Length: 6 m
  • Material composition: EN AW-6063 T66
  • Material thickness: 2.0 mm

Technical Data

Length
6 m
Material composition
EN AW-6063 T66
Material thickness
2.0 mm
Perforation
No

Documents

Features & Applications

Features

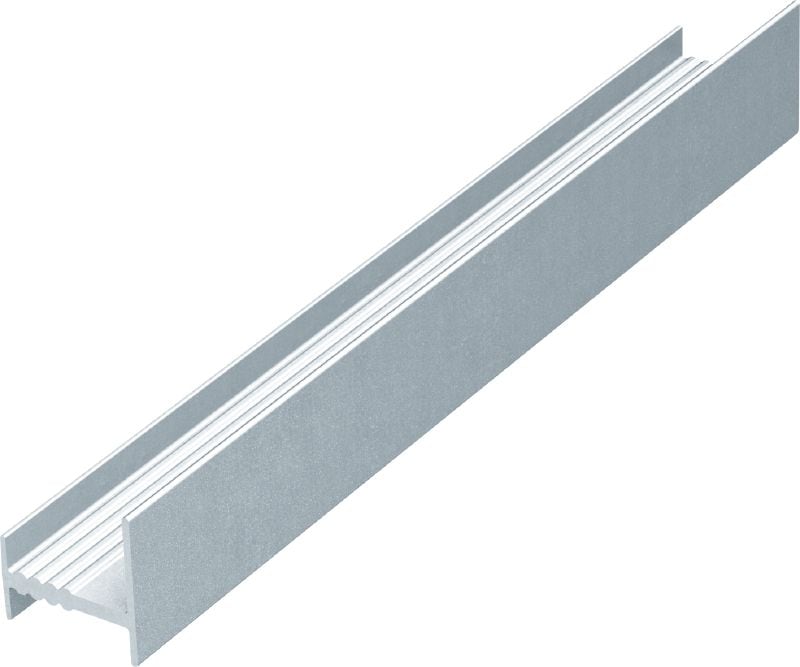

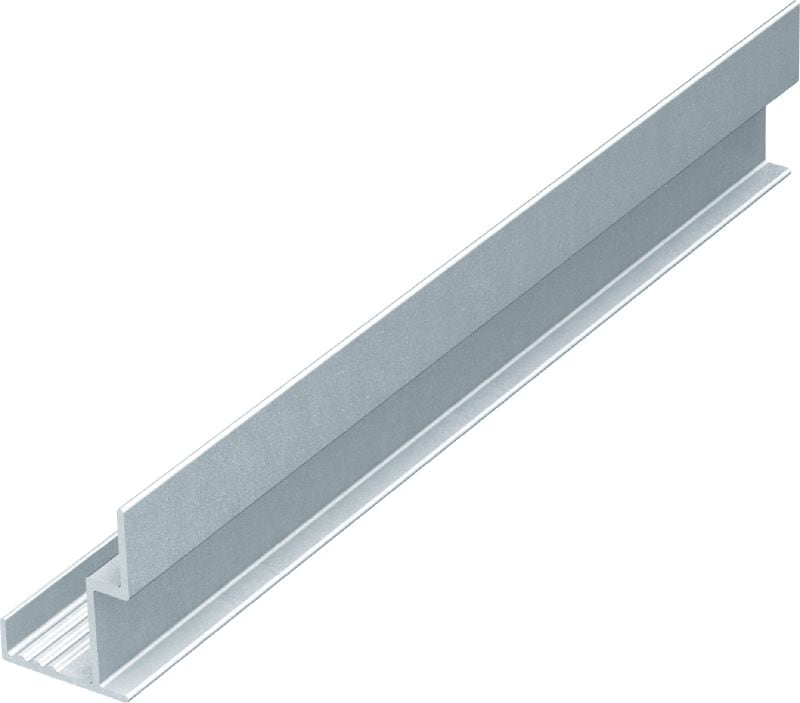

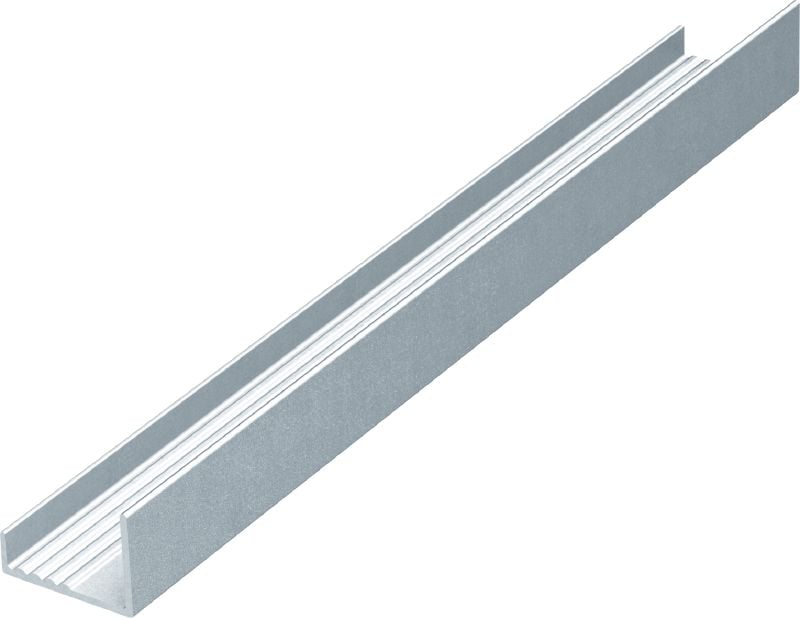

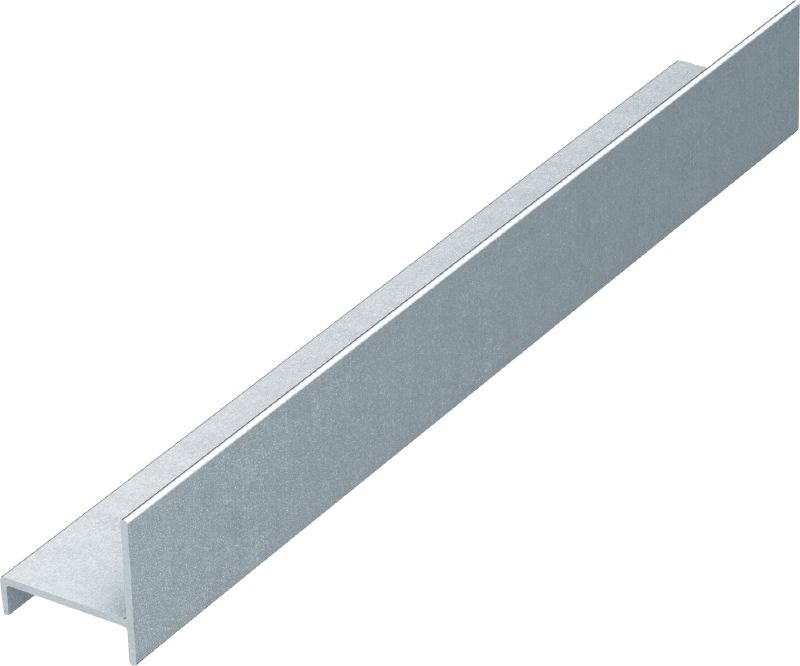

  • Complete system including top, middle, bottom and joint profile covering all applications in the project
  • Profile geometry and grooved surface allow easy installation and perfect panel fit

Applications

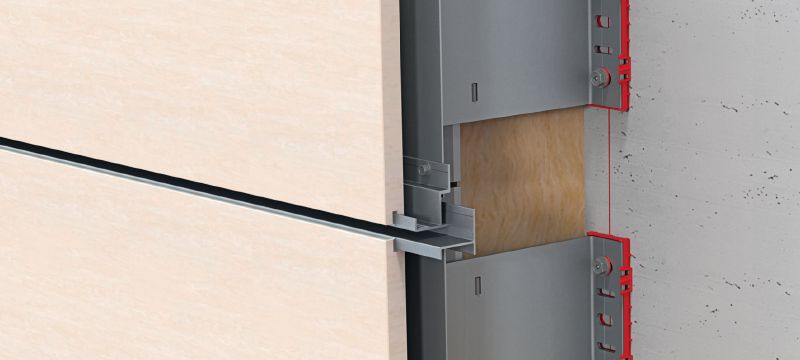

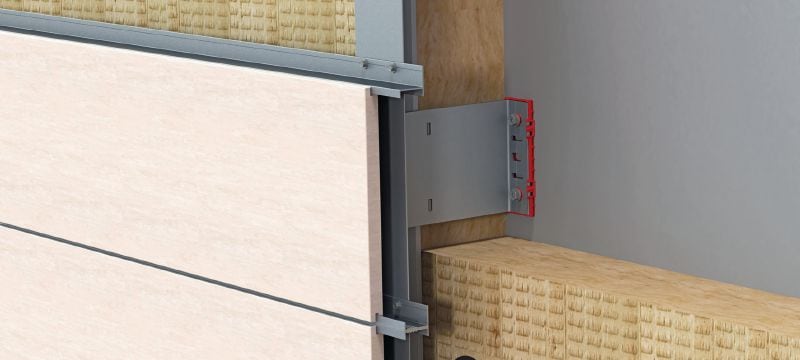

  • Second-layer horizontal profiles for fastening slotted stone panels in ventilated facade systems
  • Suitable for panels with a thickness of 2-3 cm
  • Suitable for panels with a weight of up to 120 kg/m²

For approval or certificate information, please see individual items.
