MFT-FOX VT L

LCG001408_v2.tif

LCG001406_v2.tif

LCG001424_v1.tiff

LCG001408_v2.tif

LCG001406_v2.tif

LCG001424_v1.tiff

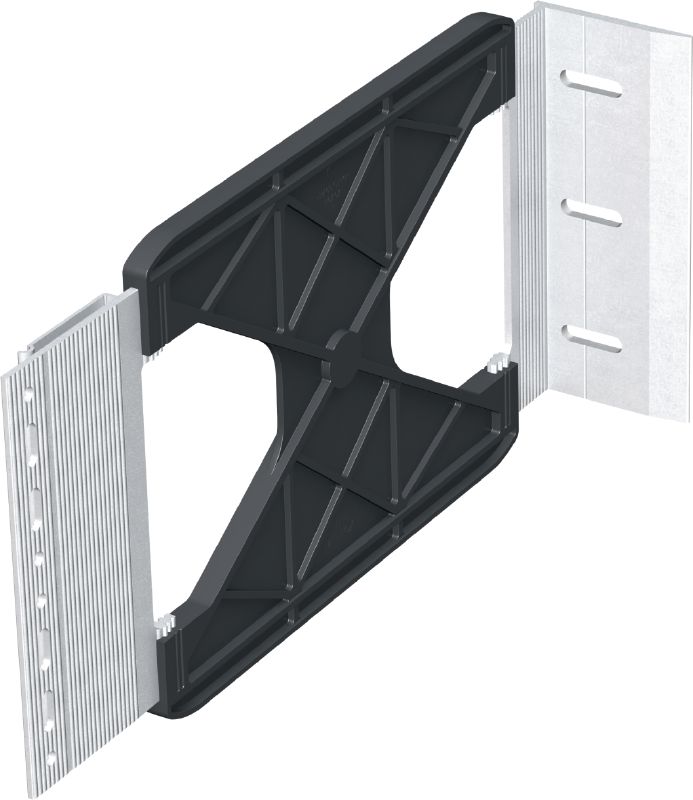

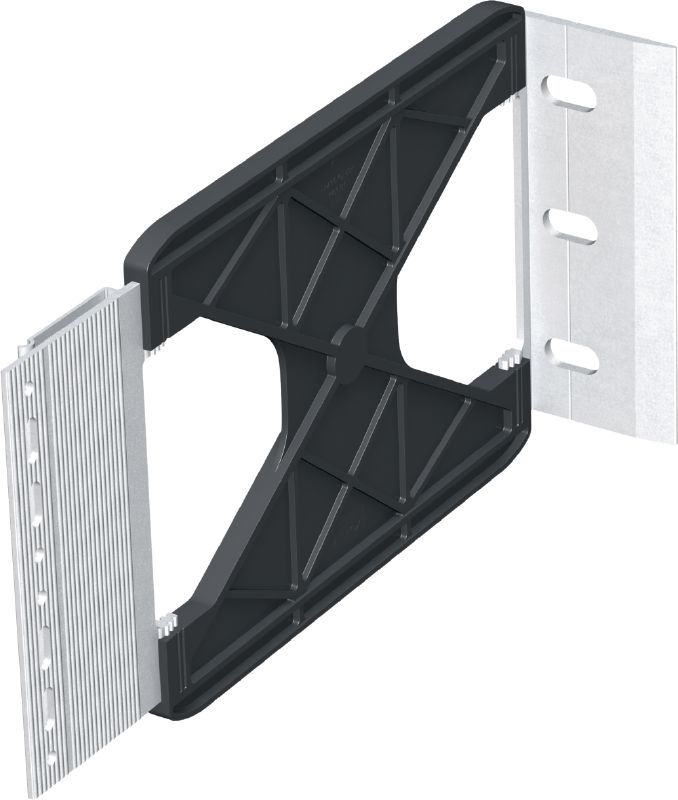

Bracket

Material composition: Polyamide, EN AW-6063 T66
Width: 62 mm
Height: 150 mm

Technical Data

Material composition

Polyamide, EN AW-6063 T66

Width

62 mm

Height

150 mm

Documents

Features & Applications

Features

Thermal bridge-free solution
Glass-fibre reinforced plastic and aluminium compound for low thermal conductivity and high load performance
Simple installation
Bracket with round and elongated holes for fixed and sliding points with max. 40 mm adjustability
Hole diameter 6.5 mm for DX fastening and screws for concrete, steel and wood

Applications

Suitable for low-energy buildings, Passivhaus and Minergie standard

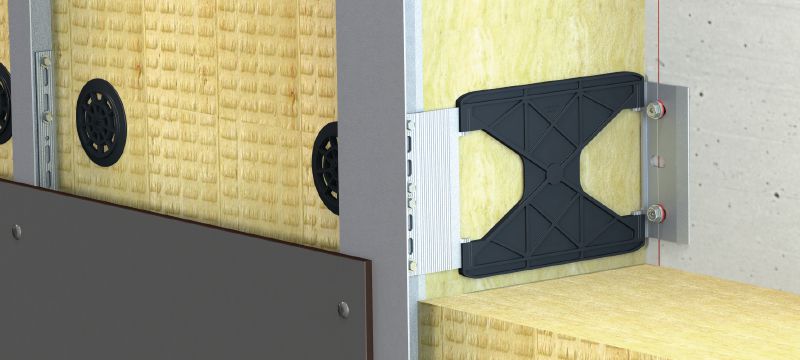

Suitable for all facade cladding

For approval or certificate information, please see individual items.
