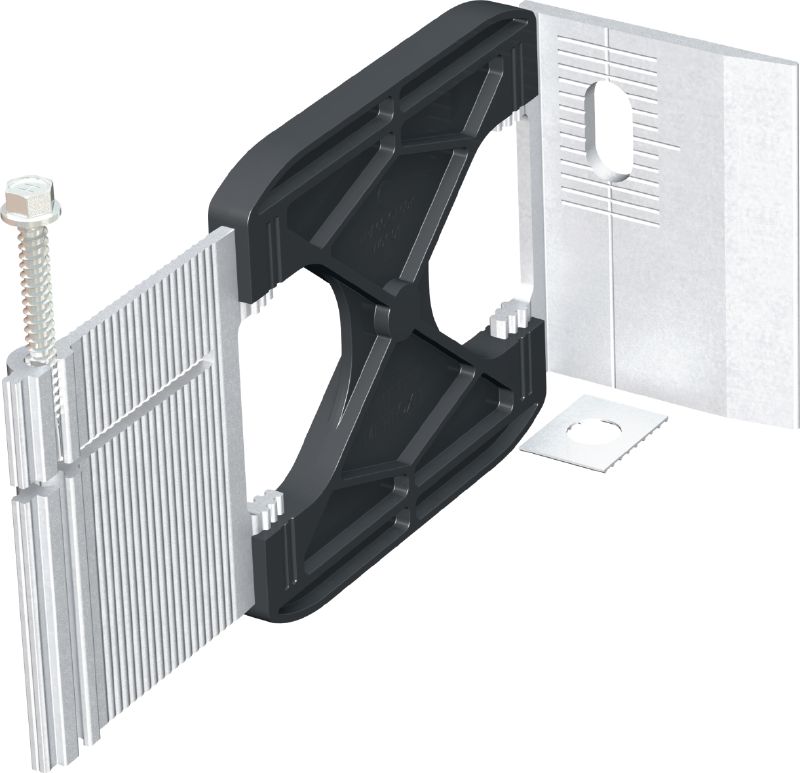

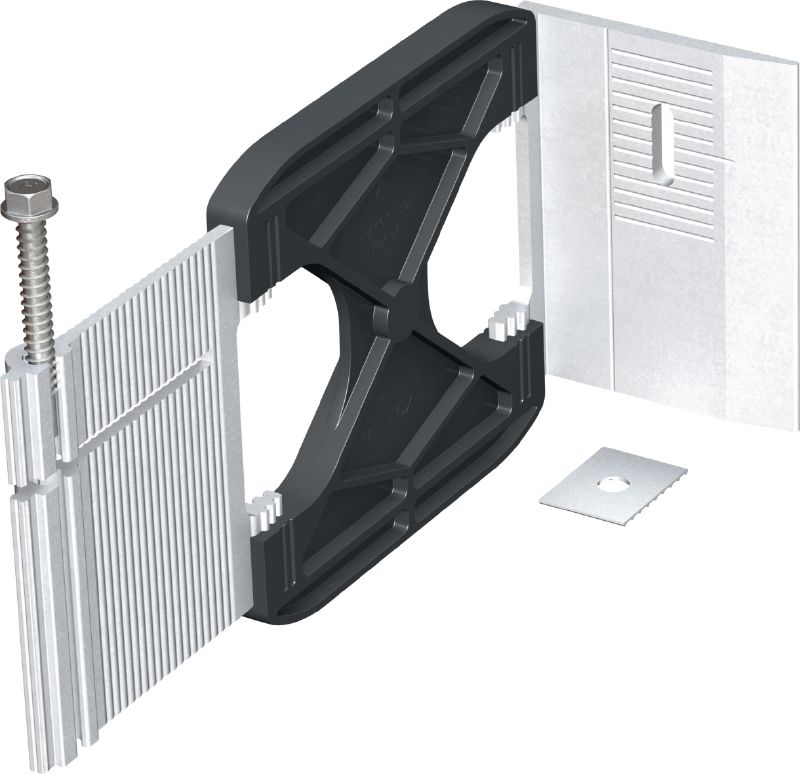

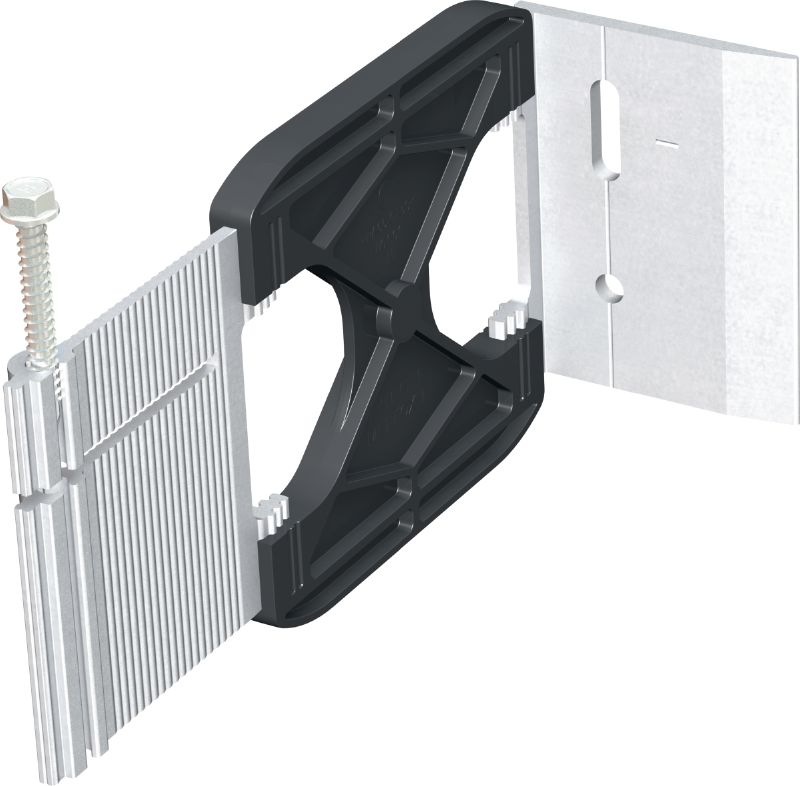

Bracket

Material composition: Polyamide, EN AW-6063 T66
Width: 62 mm
Height: 80 mm

Choose options

Length

140 mm
160 mm
180 mm
200 mm

Hole diameter - D

5 mm
6.5 mm
11 mm

Pack size

25 pc

Product options

Quantity

Packs

Total Pieces

1

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 2,171.48

Technical Data

Material composition

Polyamide, EN AW-6063 T66

Width

62 mm

Height

80 mm

Documents

Features & Applications

Features

Thermal bridge-free solution
Glass-fibre reinforced plastic and aluminium compound for low thermal conductivity and high load performance
Pre-assembled A4 screw for easy fastening of support profiles
Up to 40 mm adjustability of the support profile
Grooved washer for precise vertical alignment

Applications

Suitable for low-energy buildings, “Passivhaus” and “Minergie” standards
Suitable for all facade cladding

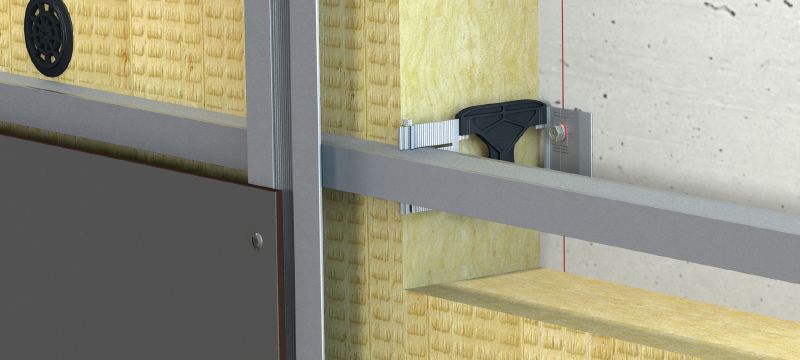

One-layer system with horizontally mounted support profiles
Two-layer system with horizontally and vertically mounted substructure profiles

For approval or certificate information, please see individual items.
