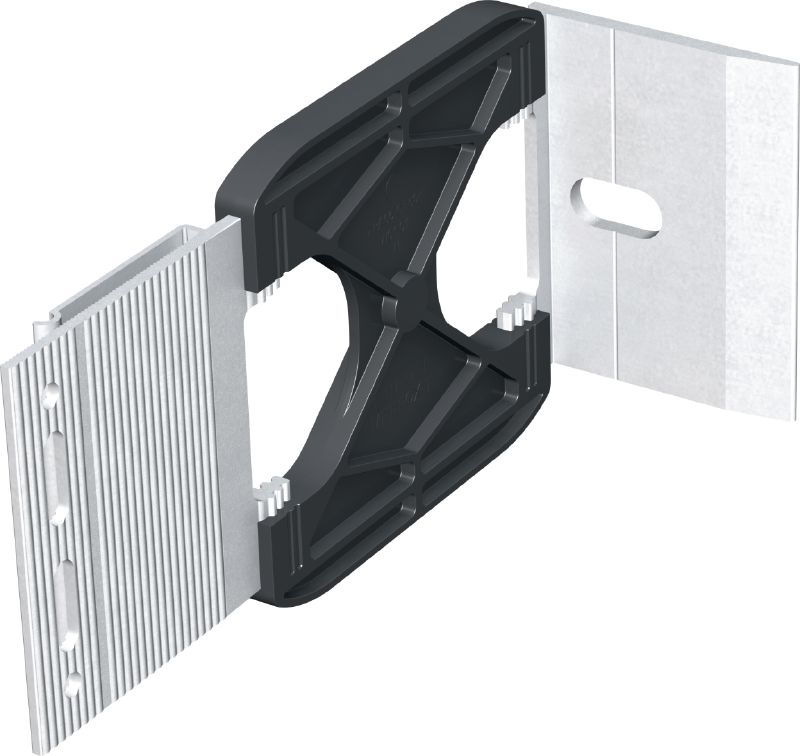

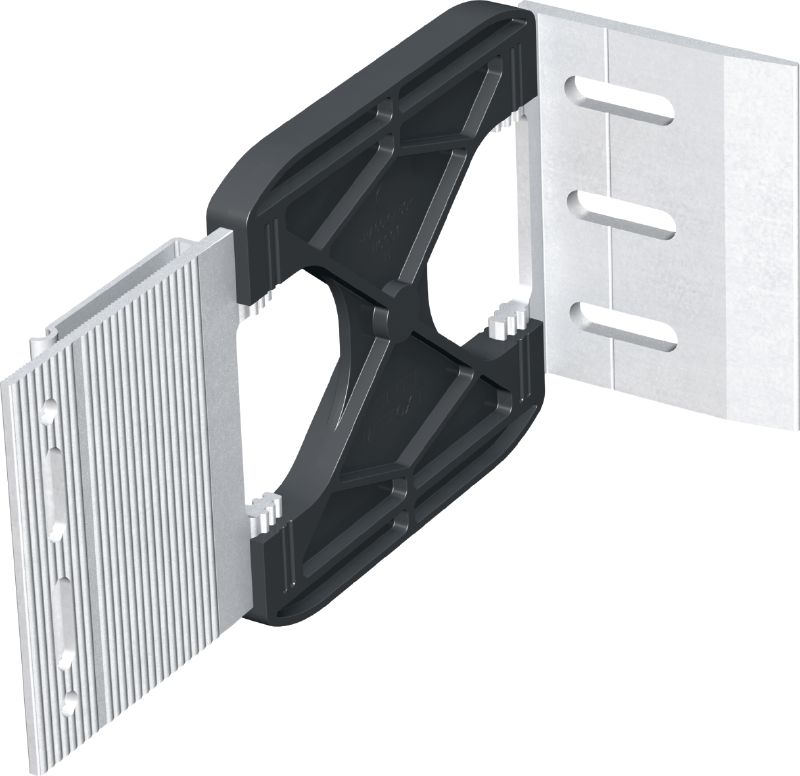

MFT-FOX VT M
Bracket
- Material composition: Polyamide, EN AW-6063 T66
- Width: 62 mm
- Height: 80 mm
Choose options
Length
- 140 mm
- 160 mm
- 180 mm
- 200 mm
Hole diameter - D
- 6.5 mm
- 11 mm
Pack size
- 25 pc
Quantity
Packs
Total Pieces
1
Ex Vat and Packaging/Forwarding charges
From AED 2,079.67
Technical Data
Material composition
Polyamide, EN AW-6063 T66
Width
62 mm
Height
80 mm
Documents
Features & Applications
Features
- Thermal bridge-free solution
- Glass-fibre reinforced plastic and aluminium compound for low thermal conductivity and high load performance
- Bracket with round and elongated holes for fixed and sliding points with max. 40 mm adjustability
- Fixing clip assists installation by providing 40 mm adjustment
- Simple installation

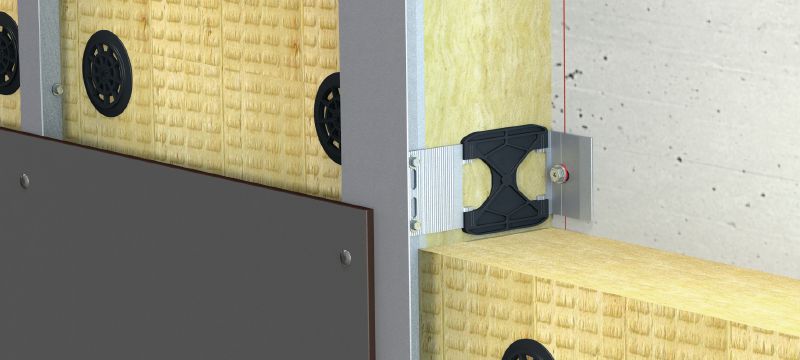

Applications
- Suitable for low-energy buildings, Passivhaus and Minergie standard
- Suitable for all facade cladding
For approval or certificate information, please see individual items.
