MFT-FOX HT L

LCG001411_v3.tif

LCG001410_v1.tif

LCG001405_v2.tif

LCG001422_v3.tiff

LCG001411_v3.tif

LCG001410_v1.tif

LCG001405_v2.tif

LCG001422_v3.tiff

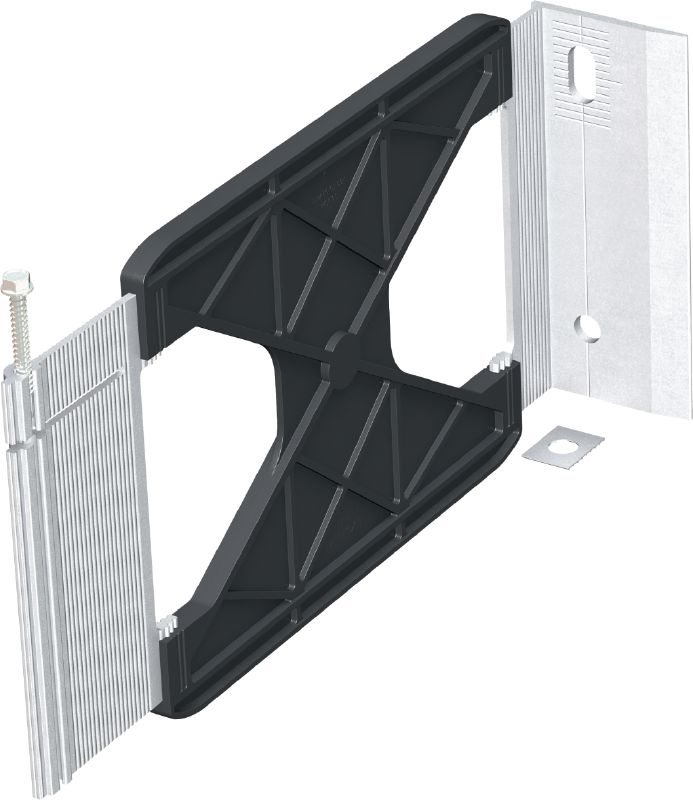

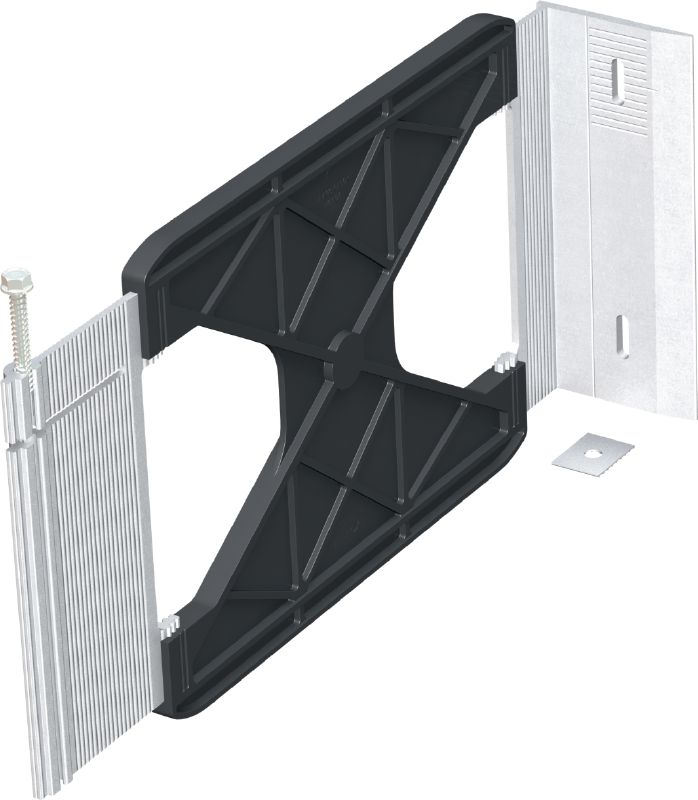

Bracket

Material composition: Polyamide, EN AW-6063 T66
Width: 62 mm
Height: 150 mm

Technical Data

Material composition

Polyamide, EN AW-6063 T66

Width

62 mm

Height

150 mm

Documents

Features & Applications

Features

Thermal bridge-free solution
Glass-fibre reinforced plastic and aluminium compound for low thermal conductivity and high load performance
Pre-assembled A4 screw for easy fastening of support profiles
Up to 40 mm adjustability of the support profile
Grooved washer for precise vertical alignment

Applications

Suitable for low-energy buildings, “Passivhaus” and “Minergie” standards
Suitable for all facade cladding

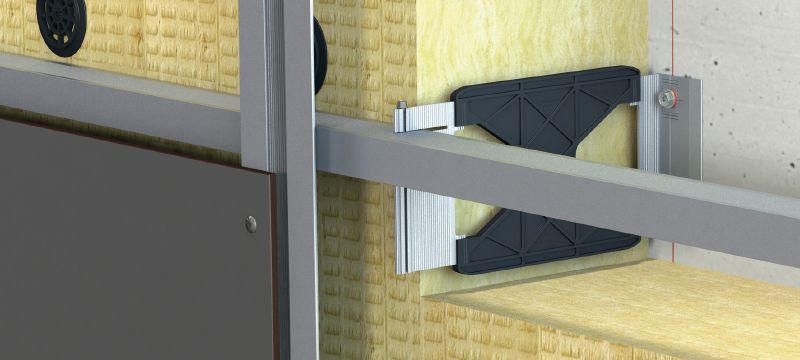

One-layer system with horizontally mounted support profiles
Two-layer system with horizontally and vertically mounted substructure profiles

For approval or certificate information, please see individual items.
