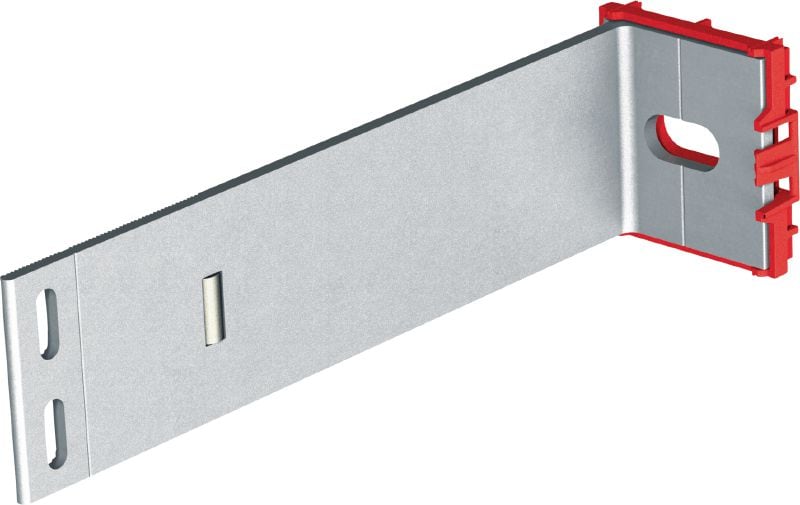

MFT-FOX VI S bracket
Versatile wall bracket for installing rainscreen façade substructures
- Material composition: Aluminium EN AW-6063 T66
- Insulation material: Polypropylene
- Thickness insulation material: 6 mm
Technical Data
Material composition
Aluminium EN AW-6063 T66
Insulation material
Polypropylene
Thickness insulation material
6 mm
Width
53 mm
Height
55 mm
Documents
Features & Applications
Features
- Labour saving – optimised bracket design and innovative fastening solutions help to lower your total cost of installation
- Easier installation – optimised helping hand and clearer markings to simplify bracket fastening and rail alignment

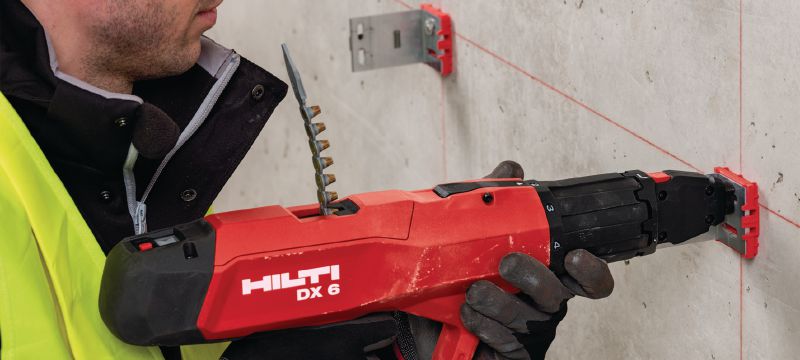

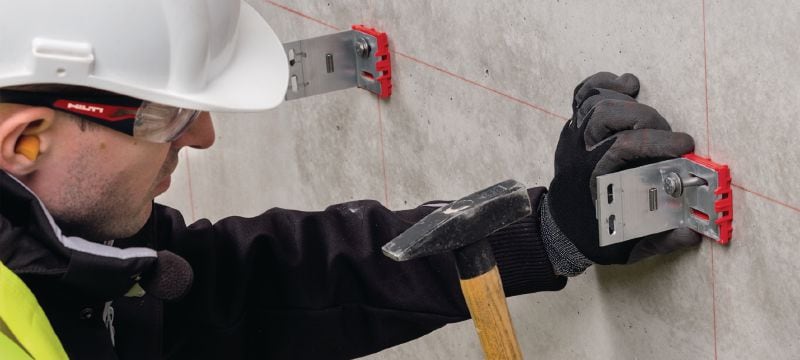

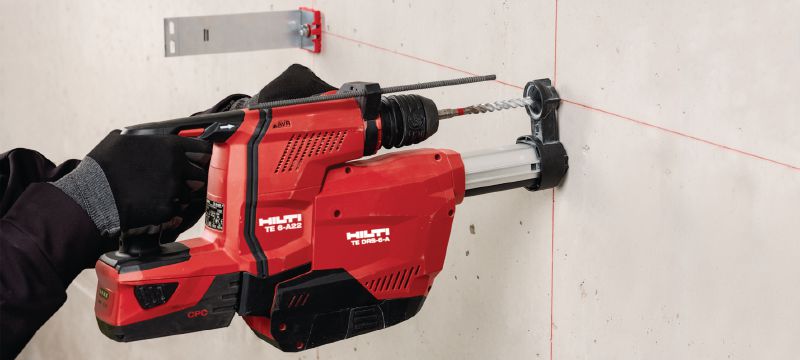

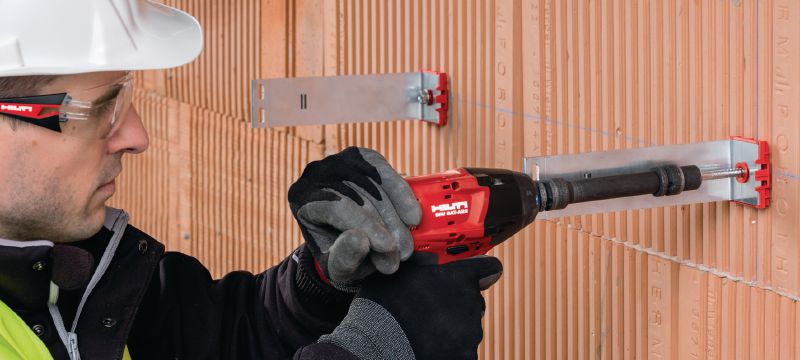

- Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
- Pre-assembled bracket – arrives on-site ready to fasten to the wall or slab
- Engineering support available – contact your local Hilti team for project-specific advice on optimising the ventilated façade substructure
Applications
- Fastening rainscreen façade substructure to concrete, masonry, metal studs and wood
- Mounting façade substructures on the primary structure (helping hand bracket)
- Installing vertical support rails
- Suitable for all façade cladding
For approval or certificate information, please see individual items.
