MQZ

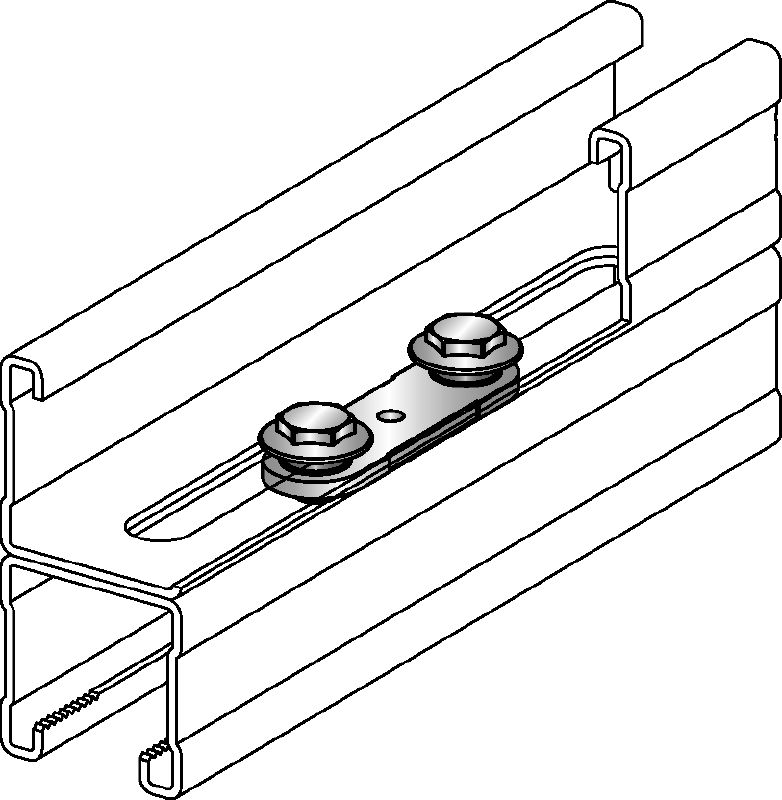

Shear brace MQZ-SS #369691
Galvanised channel tie to create double channels
- Tightening torque: 20 Nm
- Thread connection - M: M10
- Material composition: S235JR - DIN EN 10025
Customers also searched for channel brace, strengthening metal channels, glavanised connectors, connectors or metal connectors.
Choose options
Thread connection - M
- M10
Pack size
- 40 pc
Quantity
Packs
Total Piece
40
Ex Vat and Packaging/Forwarding charges
AED 2,210.17
AED 55.25 / 1 Piece
Technical Data

Tightening torque
20 Nm
Thread connection - M
M10
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Wrench size
13 mm
Weight
62 g
Documents
Features & Applications
Features
- Simple construction of double channels with channel ties
- Easy to fit in the elongated holes in the channel
Applications
- Connecting installation channels back to back
