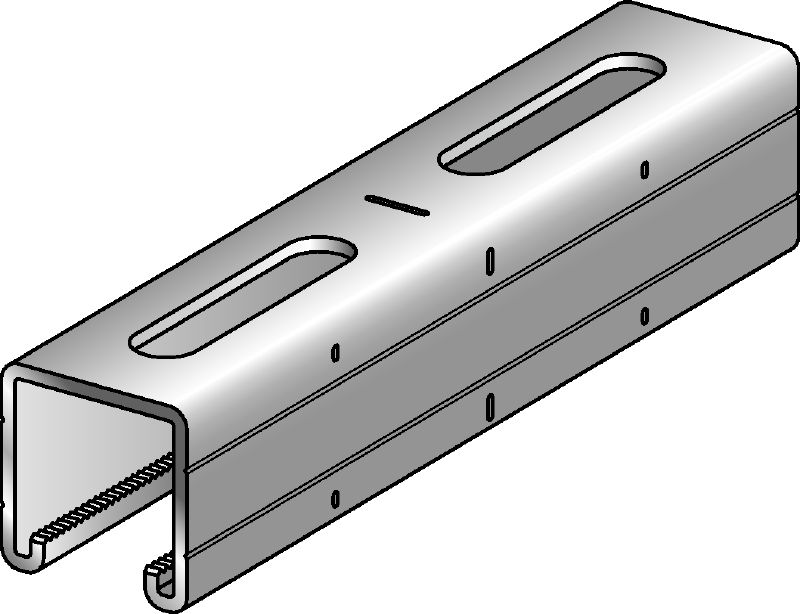

MQ-41/3 C-Channel profile
Galvanised C-Channel profile for medium-duty applications
- Approvals: ETA
- Height: 41.3 mm
- Material thickness: 3 mm
Customers also searched for pipe supports, cable tray supports, ventilation duct supports, fastening supports or installation channel.
Technical Data
Approvals
ETA
Height
41.3 mm
Material thickness
3 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Optimised hole pattern – for more flexible attachment options
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Versatile and flexible due to modular channel system
- Sound insulation elements available for all MQ installation channels
Applications
- Recommended for installation in dry interiors
- Modular support systems for piping
- Modular support systems for air ducts and cable trays
- Modular support systems for 3D structures
- Wall-mounted installation
For approval or certificate information, please see individual items.
