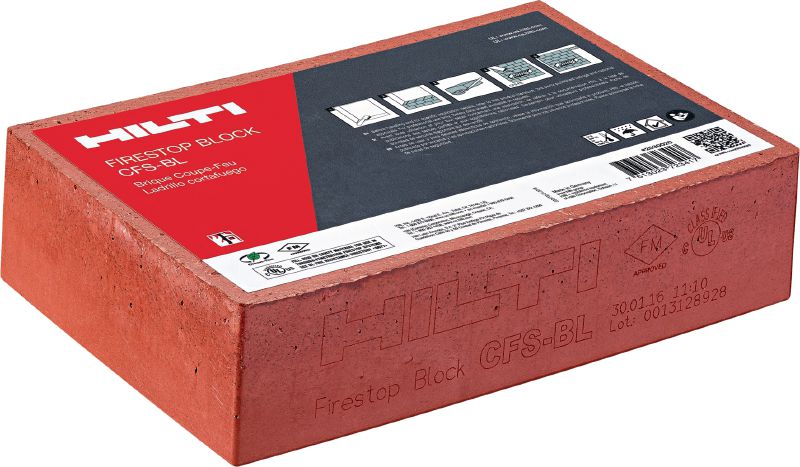

Preformed firestop blocks for sealing penetrations with cables

  • Dimensions (LxWxH): 200 x 130 x 50 mm
  • Base materials: Concrete, Masonry, Gypsum board, Sandwich Panel, Multi
  • LEED VOC: 5 g/l
ultimate

Customers also searched for firestop brickfirestop blockfire rated large openingtemporary fire rated opening or through penetration fire sea.

Technical Data

Dimensions (LxWxH)
200 x 130 x 50 mm
Base materials
Concrete, Masonry, Gypsum board, Sandwich Panel, Multi
LEED VOC
5 g/l
Application temperature range
5 - 40 °C
Product class
Ultimate

Documents

Features & Applications

Features

  • Easy to install – no special tools required
  • High-productivity, one-sided, one-person installation
  • Suitable for new penetrations or subsequent repenetration with additional cables
  • Dust-, fibre-, halogen- and solvent-free
  • Integrated grid technology reduces the use of wire mesh/cover plates making installation of the firestop block faster and cleaner

Applications

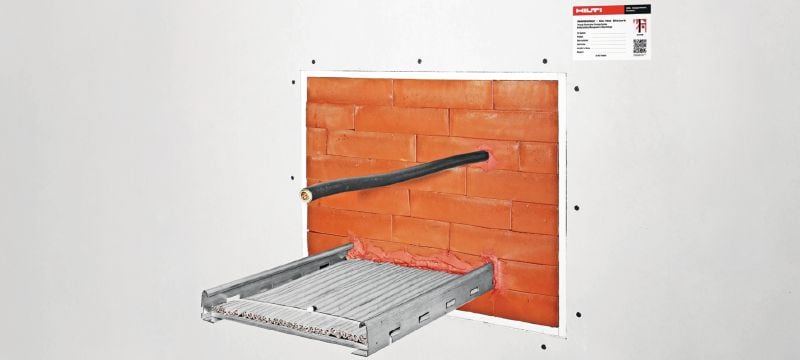

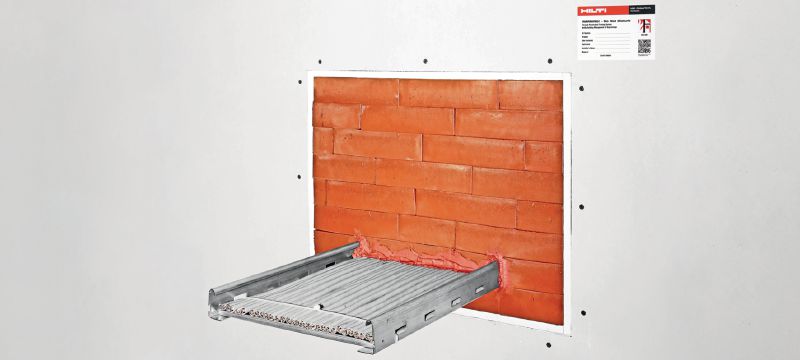

  • Temporary or permanent sealing of cables, cable trays and pipes in wall and floor openings
  • Cables and cable trays
  • Floors and walls
  • Concrete, CMU, gypsum

For approval or certificate information, please see individual items.
